Product Description

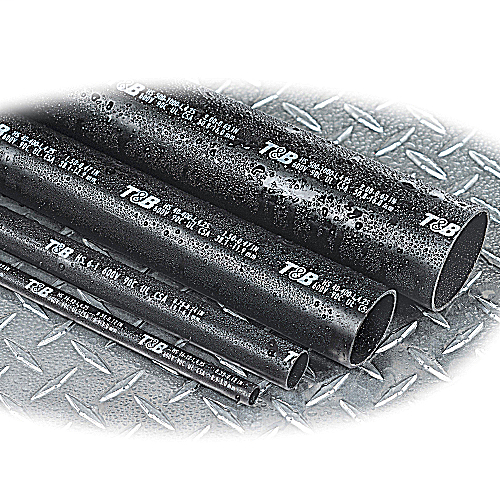

The ABB HS6-1L is a heavy-wall heat shrink tubing designed for electrical insulation and protection. It is suitable for applications in cable sizes from #6 to #1 gauge and is constructed from cross-linked polyolefin with a thermoplastic adhesive lining. This tubing is rated for 600 volts and can endure temperatures from negative fifty-five to one hundred ten degrees Celsius.
- Inner diameter expands to three-fourths inch.
- Length is eight inches.
- Provides moisture protection and can seal over various insulating materials.
Product Highlights
This product offers excellent resistance to abrasion, chemicals, and environmental factors. It meets stringent standards, making it ideal for various installations.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: HS6-1L
Technical Specifications
-
Material: Polyolefin
-
Color: Black
-
Shrink Ratio: 3:1
-
Voltage Rating: 600 VAC
-
Inner Diameter Expanded: three-fourths inch
-
Inner Diameter Recovered: 0.24 inch
-
Wall Thickness Recovered: 0.09 inch
-
Length: eight inches
-
Temperature Rating: negative fifty-five to one hundred ten degrees Celsius
-
Shrink Temperature: one hundred twenty degrees Celsius
-
Standards/Approvals: UL Listed, CSA Certified, ANSI Specified, ICEA Compliant
