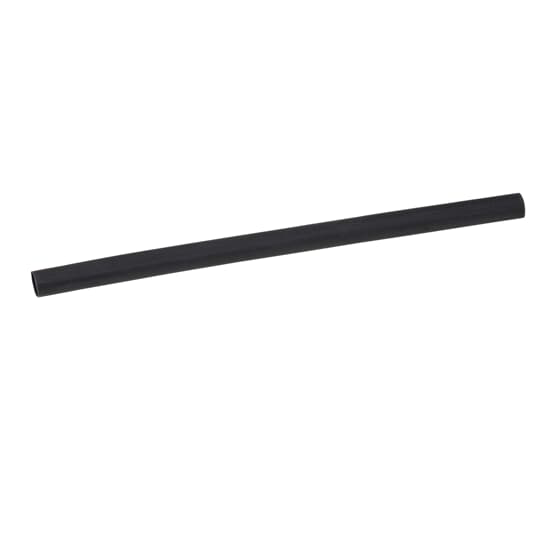

ABB HS500-1000 Heat Shrink Tubing Heavy-Wall 9 Inches

Product Description

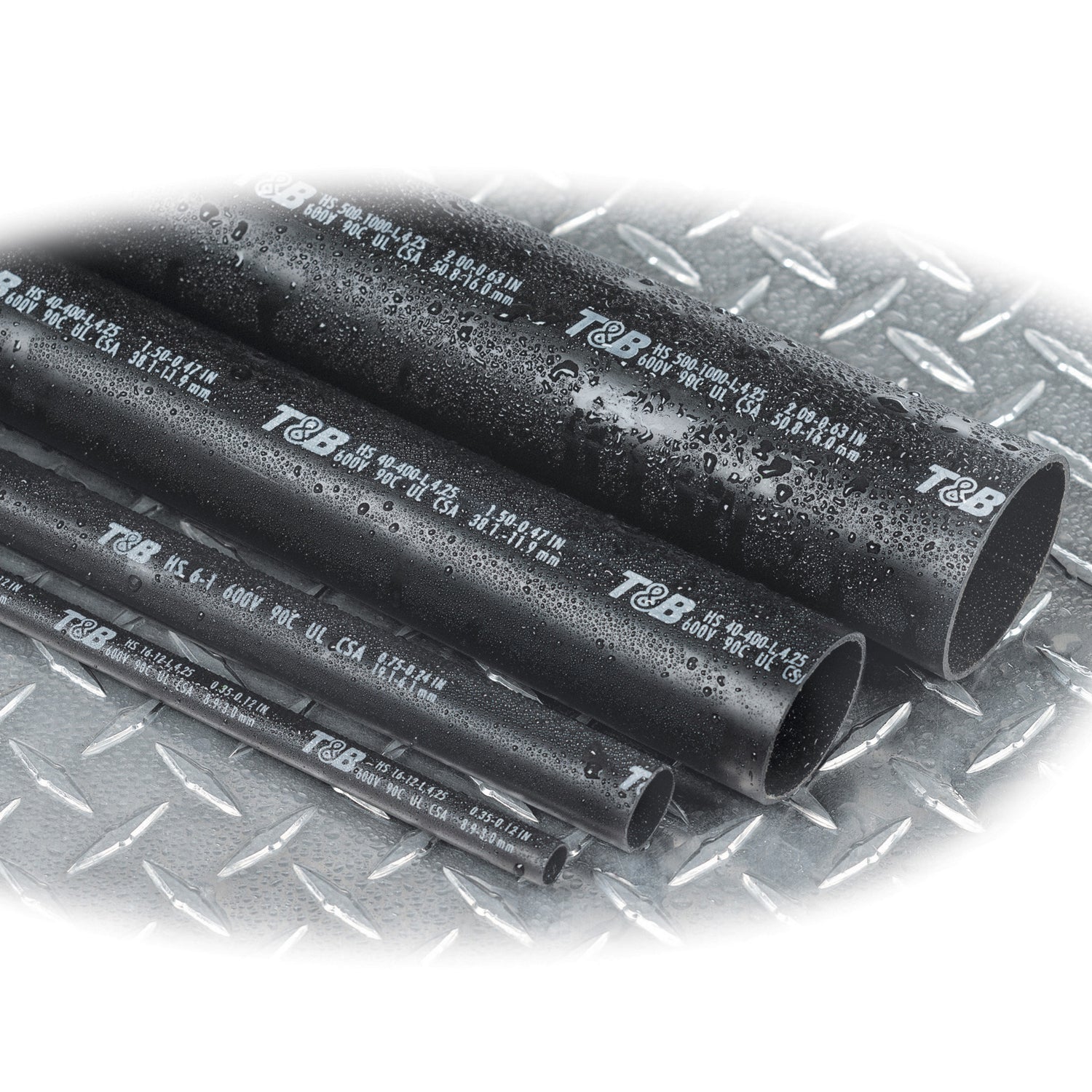

ABB HS500-1000 is a heavy-wall heat shrink tubing designed for cable sizes from five hundred to one thousand kcmil. This product features cross-linked polyolefin material with a thermoplastic adhesive liner for reliable insulation and protection. It expands to an inner diameter of two inches and has a length of nine inches, suitable for various applications in electrical environments.

• Shrink ratio of three to one
• Rated for six hundred volts
• Temperature rating of minus fifty-five to one hundred ten degrees Celsius

Product Highlights

This heat shrink tubing provides excellent moisture protection and conforms to a wide range of materials, making it ideal for underground, direct burial, and submersible applications.

Product Information

Standard Information

• Brand: ABB
• MPN: HS500-1000

Technical Specifications

• Material: Polyolefin
• Voltage Rating: 600 Volts
• Color: Black
• Inner Diameter Expanded: 2 inches
• Inner Diameter Recovered: 0.63 inches
• Length: 9 inches
• Shrink Ratio: 3:1
• Shrink Temperature: 120 degrees Celsius
• Temperature Rating: -55 to 110 degrees Celsius
• Wall Thickness Recovered: 0.16 inches
• Standards/Approvals: UL E9809, CSA Certified
