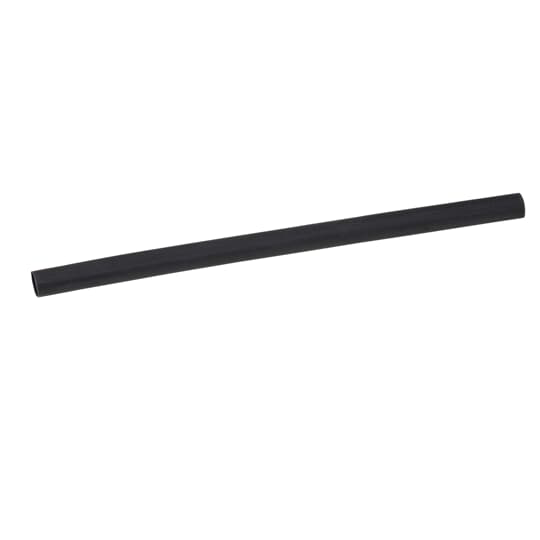

ABB HS40-400-4 Heat Shrink Tubing 600 VAC (48 Inch) Replacement MPN

Product Description

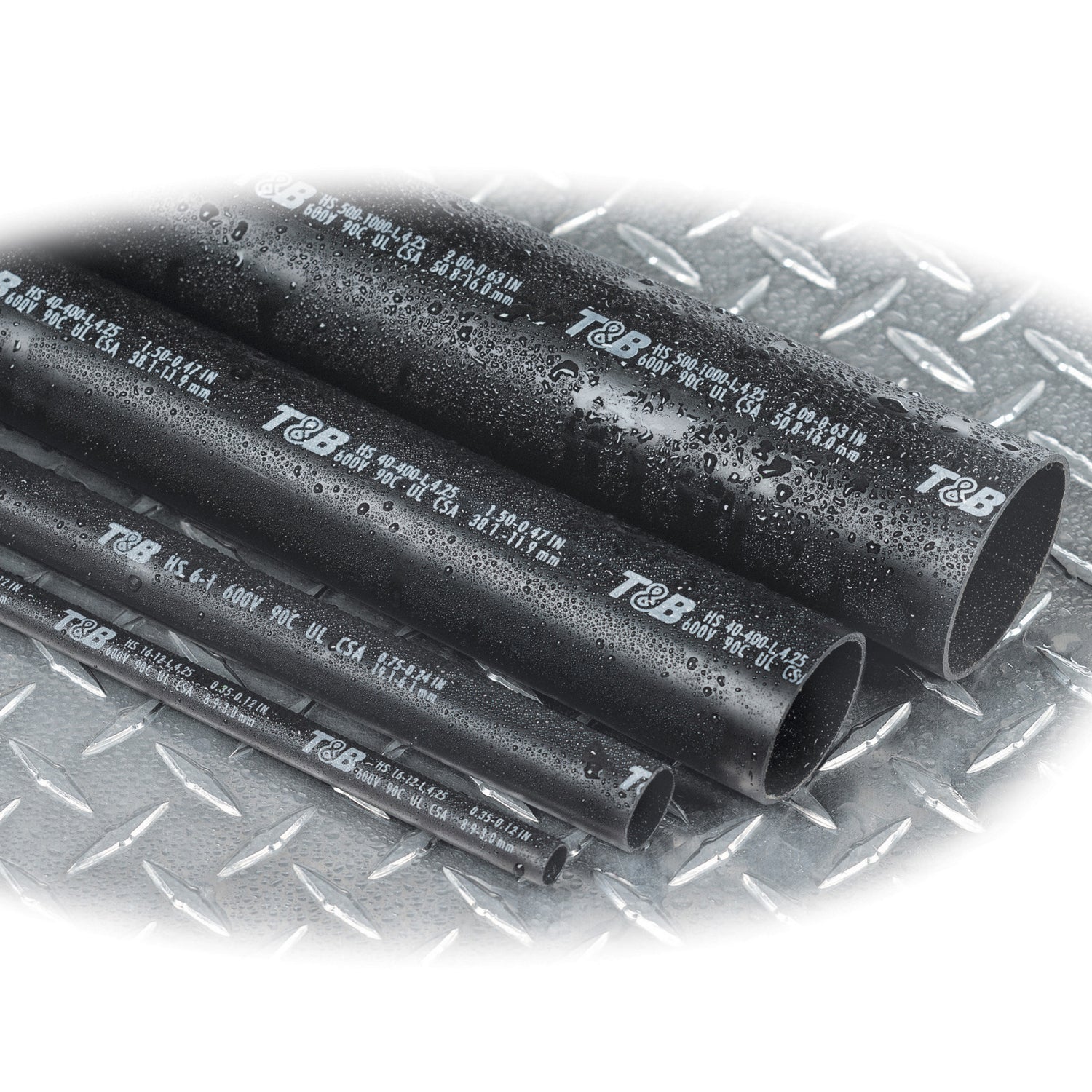

The ABB HS40-400-4 is a heavy-wall heat shrink tubing designed for cable protection. It is suitable for wire sizes from 2/0 AWG to 350 kcmil. The tubing expands to an inner diameter of one and one-half inches and recovers to a diameter of zero point forty-seven inches, ensuring a secure fit on cables. This product is black and made from thermally stabilized cross-linked polyolefin.

• Rated for 600 VAC usage.
• Temperature rating ranges from negative fifty-five to one hundred ten degrees Celsius.
• Features an internally applied sealant that protects against moisture.

Product Highlights

This heat shrink tubing withstands severe mechanical requirements, making it ideal for underground, submersible, and direct burial installations.

Product Information

Standard Information

• Brand: ABB
• Sub Brand: Shrink-Kon

Technical Specifications

• Length: 48 inches
• Inner Diameter Expanded: 1-1/2 inches
• Inner Diameter Recovered: 0.47 inches
• Voltage Rating: 600 VAC
• Shrink Ratio: 3:1
• Material: Polyolefin
• Temperature Rating: -55 to 110 degrees Celsius
• Wall Thickness Recovered: 0.16 inches
