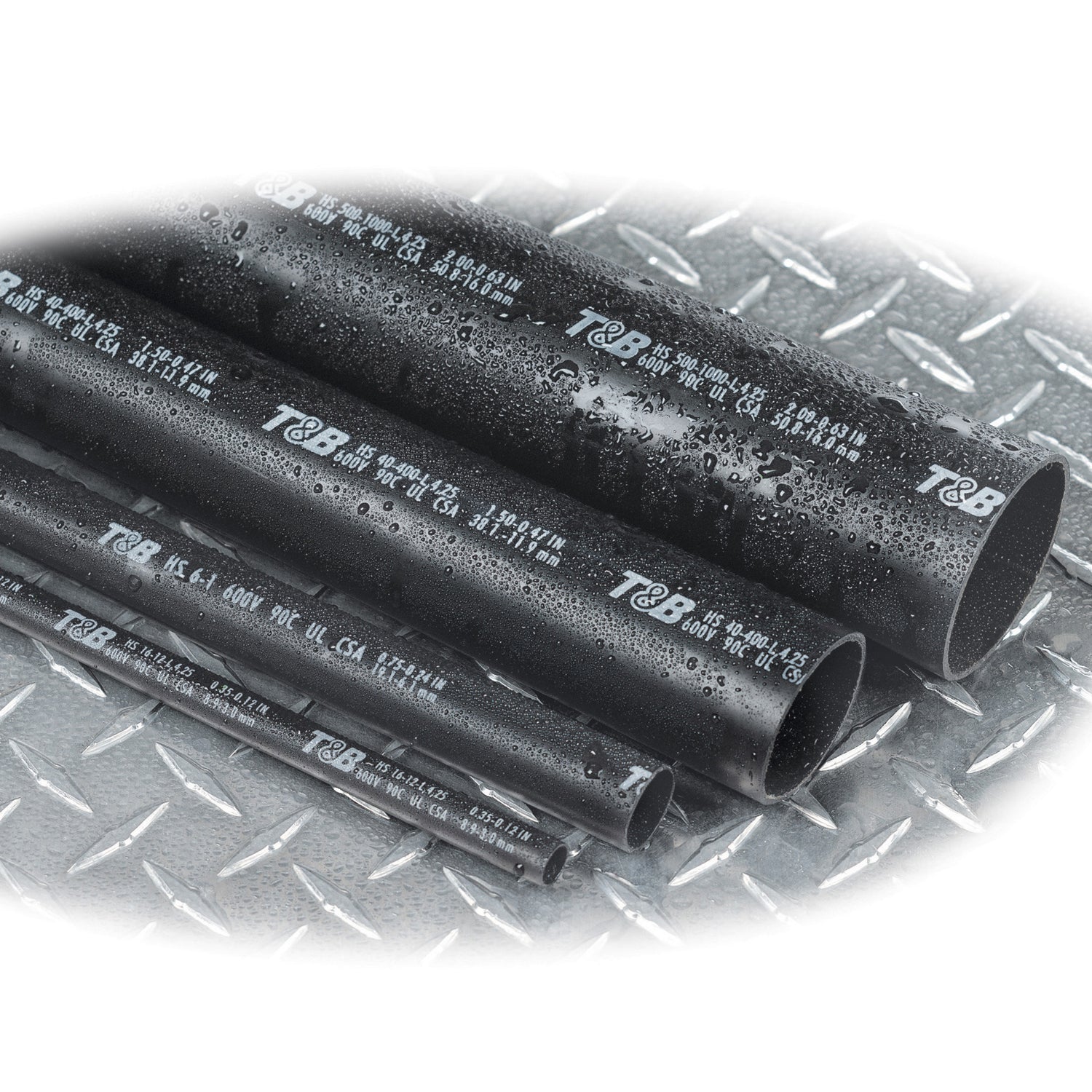

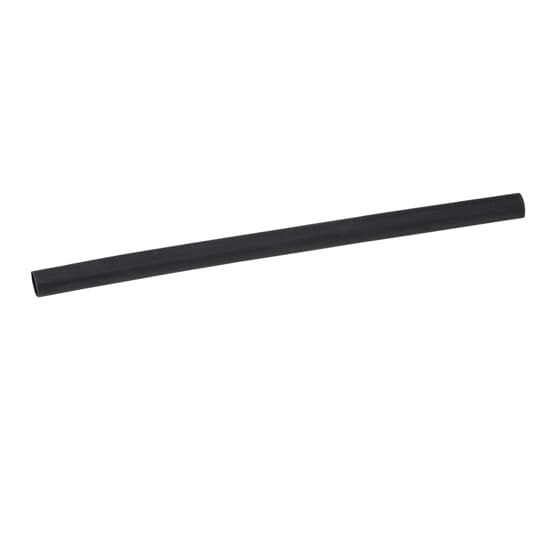

ABB HS4-30L Heat Shrink Tubing, Heavy-Wall, 9 Inch, Black

Product Description

The ABB HS4-30L is a heavy-wall heat shrink tubing designed for cable protection in various applications. It is suitable for wire sizes ranging from #4 to 3/0 AWG. This heat shrink tubing has an expanded inner diameter of one point one inches and a length of nine inches. It is engineered to operate at a voltage of six hundred volts and can withstand temperatures from negative fifty-five to one hundred ten degrees Celsius.

• Heavy-wall design provides excellent durability.
• Thermoplastic adhesive liner for added moisture protection.
• Meets severe mechanical requirements for various installations.

Product Highlights

The tubing features a thermally stabilized cross-linked polyolefin material that ensures a recovered wall thickness greater than the cable jacket it replaces. It is ideal for moisture proofing connections and terminations.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Material: Polyolefin
• Length: 9 inches
• Voltage Rating: 600 volts
• Shrink Ratio: 3:1
• Shrink Temperature: 120 degrees Celsius
• Color: Black
• Temperature Rating: -55 to 110 degrees Celsius
• Wall Thickness Recovered: 0.12 inches
• Standards/Approvals: UL Listed, CSA Certified
