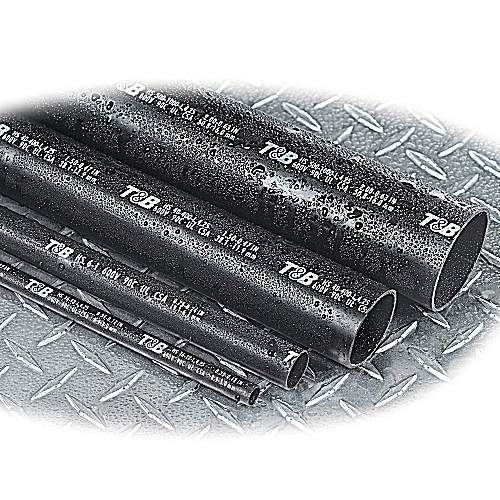

ABB HS30-4 Thomas & Betts HS30-4 48 Heat Shrink Tubing Heavy-Wall Replacement MPN

Product Description

The ABB HS30-4 is a heavy-wall heat shrink tubing designed for cable sizes between seven hundred fifty and twelve hundred fifty MCM. This product has an expanded diameter of three point five four inches and a length of forty-eight inches. It is rated for use at six hundred volts and suitable for continuous temperatures up to ninety degrees Celsius. The tubing material consists of cross-linked polyolefin, featuring a thermoplastic adhesive liner for enhanced durability.

• Heavy-wall design for robust protection
• Internally applied sealant for moisture resistance
• Compatible with various insulation materials

Product Highlights

This heat shrink tubing protects cables in challenging environments, including direct burial and submersible installations.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Catalog Number: HS30-4
• Length: 48 inches
• Voltage: 600 Volts
• Material: Polyolefin
• Shrink Ratio: 3:1
• Temperature Rating: -55 to 110 degrees Celsius
• Wire Size: 380.03 mm
• Sub Brand: Shrink-Kon
