Product Description

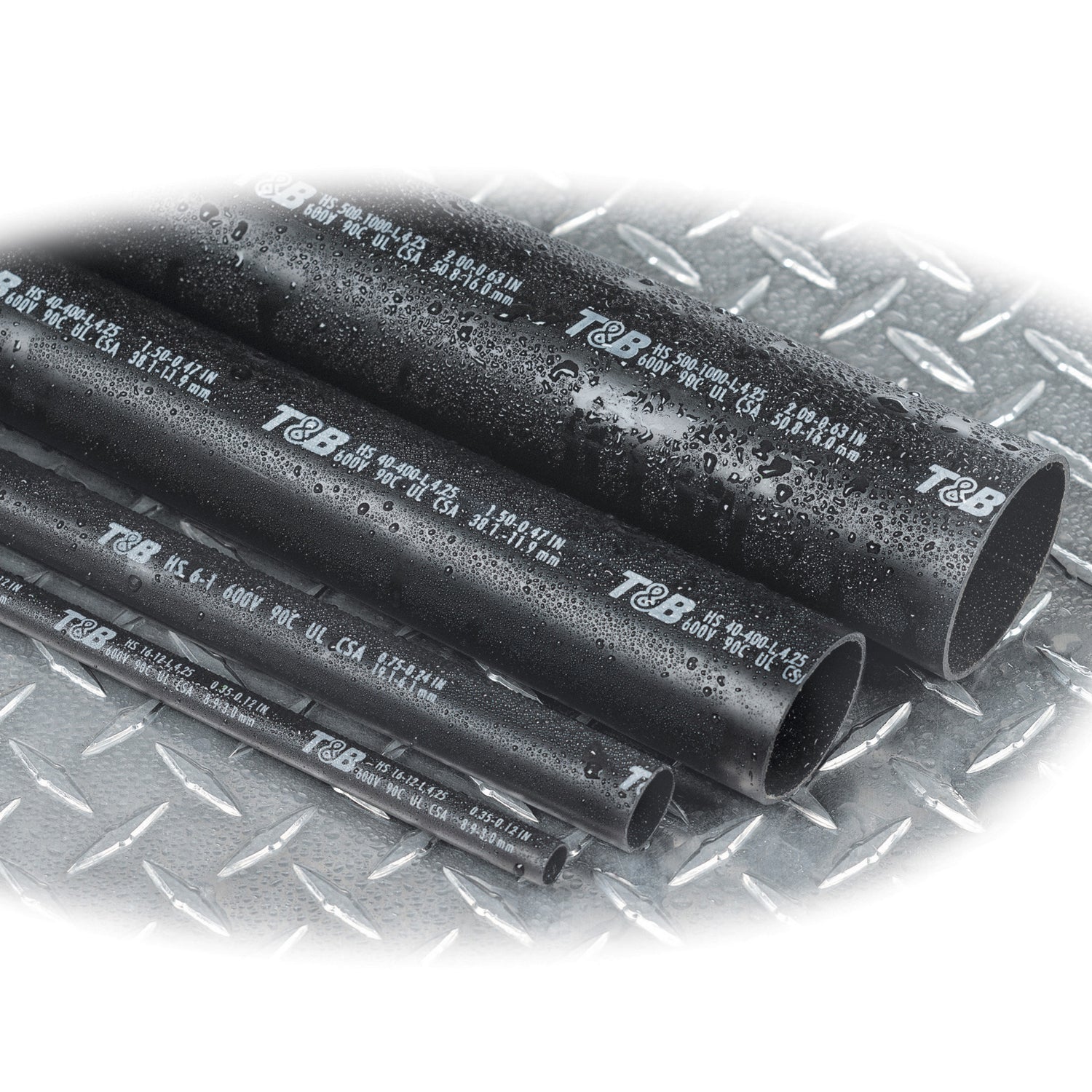

The ABB HS12-6L is a heavy-wall heat shrink tubing designed for wire sizes ranging from eight to six AWG. It features an expanded inner diameter of 0.51 inches and is crafted from cross-linked polyolefin with a thermoplastic adhesive liner. This product is suitable for continuous use at voltages up to six hundred volts and can withstand temperatures from minus fifty-five to one hundred ten degrees Celsius.
- Heavy-duty design for enhanced durability
- Thermoplastic adhesive liner for environmental protection
- 3:1 shrink ratio for versatile applications
Product Highlights
This tubing offers excellent protection against moisture and mechanical stress. It is ideal for installation in diverse environments including those exposed to harsh conditions.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Thomas & Betts Co
Technical Specifications
-
Material: Polyolefin
-
Length: 6 inches
-
Inner Diameter Expanded: 0.51 inches
-
Inner Diameter Recovered: 0.16 inches
-
Wall Thickness Recovered: 0.09 inches
-
Shrink Ratio: 3:1
-
Voltage Rating: 600 VAC
-
Temperature Rating: -55 to 110 degrees Celsius
