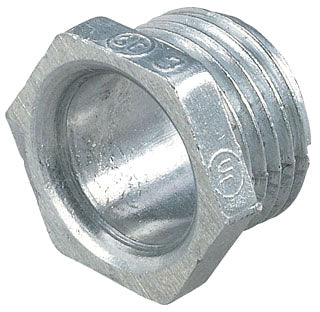

Abb HA209 Steel City 3-1/2 Inch Bushed Nipple Fitting

Product Description

The ABB HA209 is a 3-1/2 inch double coupling bushed nipple conduit fitting manufactured under the Steel City line. This type of fitting serves as a threaded connector used to join or extend conduit runs in electrical raceway systems. It is designed for use in commercial and industrial electrical installations where secure, code-compliant conduit connections are required. Licensed electricians and electrical contractors typically specify this type of bushed nipple when building or extending rigid or IMC conduit systems. The fitting ships in bulk quantity given its package weight of 89 pounds.

This fitting is suited for commercial and industrial conduit installations requiring a 3-1/2 inch trade size connection. Double coupling bushed nipples are commonly used at panel entries, junction box connections, and conduit-to-enclosure transitions where a short threaded section with a bushed end is needed to protect conductors from abrasion. The package dimensions of 18.790 inches by 10.800 inches by 7.800 inches indicate a multi-piece bulk pack, making this a practical order for contractors stocking a job site or supply room.

Key Features

• 3-1/2 inch trade size double coupling bushed nipple for rigid and IMC conduit systems
• Bushed end protects wire and cable insulation at conduit terminations
• Threaded on both ends for secure coupling engagement
• Steel construction consistent with Steel City fitting standards
• Bulk pack format suited for commercial and industrial job-site stocking

Compatibility

Designed as an OEM-style replacement and standard-stock fitting for 3-1/2 inch rigid metal conduit and intermediate metal conduit raceway systems in commercial and industrial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for conduit wiring methods. De-energize all circuits in the affected raceway before disassembling or modifying any conduit section. Use appropriate pipe wrenches or conduit tools to achieve proper thread engagement without cross-threading. Inspect the bushed end for damage before installation to ensure conductor insulation protection is maintained.

Technical Specifications

• Trade Size: 3-1/2 inches
• Type: Double Coupling Bushed Nipple
• Package Weight: 89 pounds
• Package Length: 18.790 inches
• Package Width: 10.800 inches
• Package Height: 7.800 inches
• UPC: 78599141119

Standard Information

• Brand: ABB
• Manufacturer Part Number: HA209
