ABB H200A Thomas & Betts H200A 2 Inch Conduit Fitting

Product Description

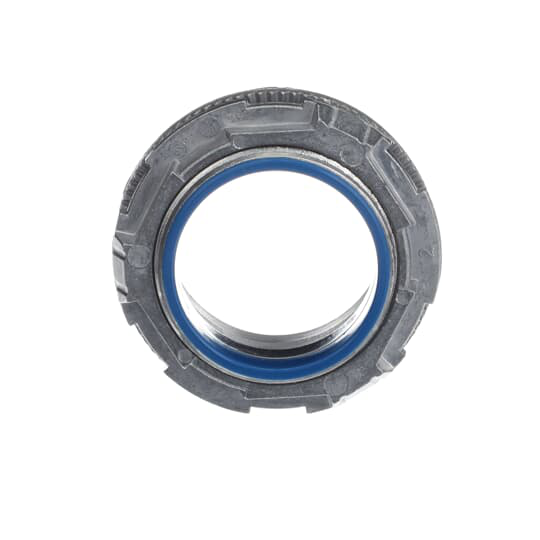

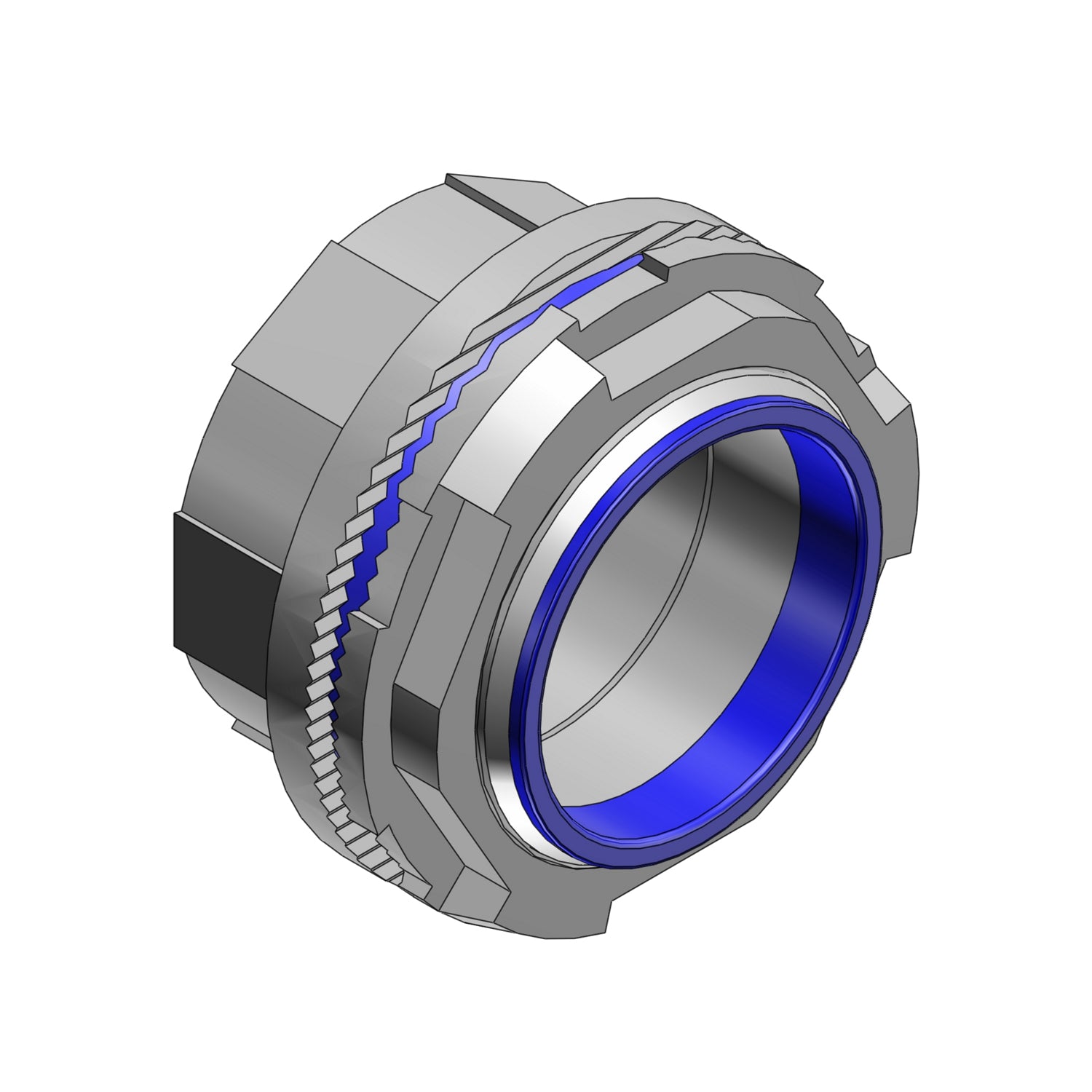

The ABB H200A is a hub connector designed for use with rigid and IMC conduits. This product is made from aluminum and features a thermoplastic insulating throat. It includes a nitrile sealing ring, ensuring a secure fit and protection against environmental factors.

• Application: Connects threaded metal conduit to a threadless opening in a box or enclosure.
• Temperature Rating: Rated for up to 105 degrees Celsius.
• Size: Compatible with two-inch conduits.

Product Highlights

This hub connector supports efficient installation with its innovative locking mechanism and features designed for optimal performance and reliability in electrical applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: H200A

Technical Specifications

• Material: Aluminum
• Dimensions: 3-1/4 inches wide x 1-15/16 inches high
• Application: For use to connect threaded metal conduit to a threadless opening in a box or enclosure
• Temperature Rating: 105 degrees Celsius
• Standards/Approvals: CSA Certified, UL File No. E23018
• Suitable For Use With: Rigid/IMC Conduits
