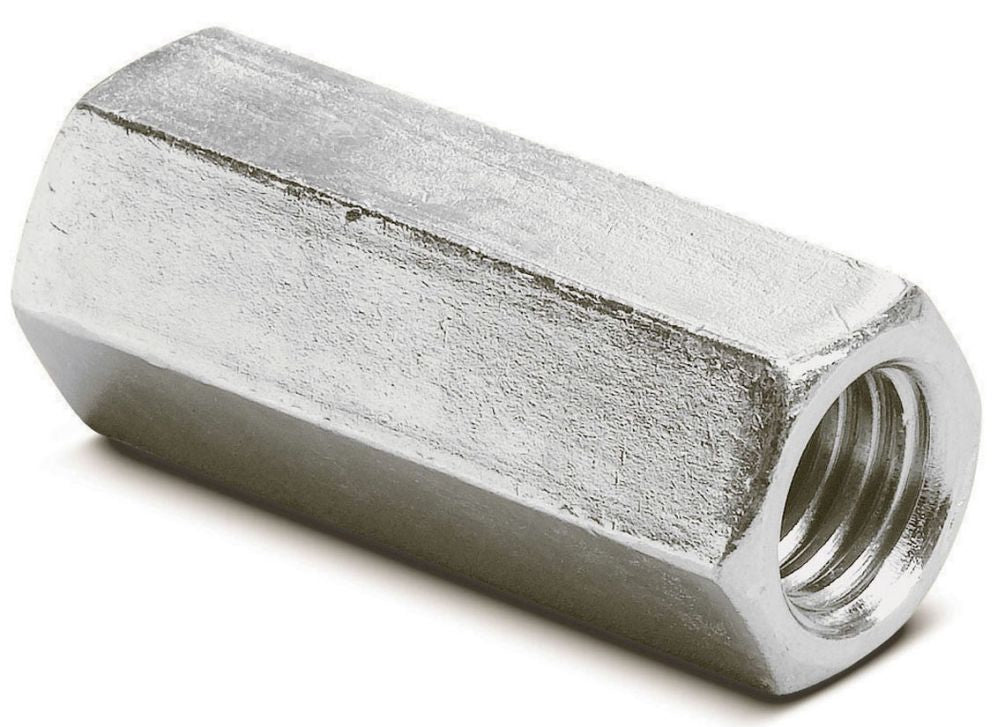

Abb H1195/8 Strut Rod Coupling

Product Description

The ABB H1195/8 is a strut rod coupling designed to connect threaded rod to strut channel in structural support systems. It provides a secure mechanical joint between the rod and the channel, maintaining alignment and load transfer in suspended or braced assemblies. This fitting is a standard component in overhead support work across HVAC, plumbing, electrical, and mechanical piping installations. Electricians, pipefitters, and mechanical contractors install this type of hardware during rough-in when hanging duct, conduit, pipe, or equipment from structural framing.

The H1195/8 is suited for commercial and industrial applications where threaded rod and strut channel are used together to form hanger assemblies or braced support grids. It is appropriate for both new construction and retrofit work where existing strut channel systems require additional rod connections or extensions.

Key Features

• Connects threaded rod directly to strut channel for secure structural support
• Standard hardware geometry compatible with common strut channel profiles
• Suited for overhead hanger assemblies in mechanical, electrical, and piping systems
• Supports new construction and retrofit strut support configurations

Compatibility

Designed as an OEM-style fitting for use with standard strut channel and threaded rod support systems in commercial and industrial mechanical installations.

Installation Notes

Installation is typically performed by licensed electricians, pipefitters, or mechanical contractors. De-energize any nearby electrical systems and relieve pressure from any active piping before working in the overhead space. Use appropriate hand tools to tighten the coupling to the threaded rod and strut channel per the applicable load requirements. Follow local building codes and relevant sections of applicable mechanical or structural codes when sizing and installing rod and strut support assemblies.

Technical Specifications

• Weight: 5.38 pounds
• UPC: 61601331816

Standard Information

• Brand: ABB
• Manufacturer Part Number: H1195/8
