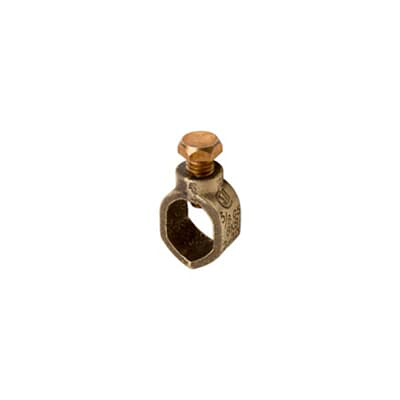

ABB G5 Blackburn G5 10 Sol Wire Range 2 Str 1/2 in, 5/8 in Rod Size Ground Rod Clamp

Product Description

The ABB G5 Blackburn Ground Rod Clamp is designed for use with copper conductors. This type G clamp accommodates both half-inch and five-eighths inch rods. It is suitable for a conductor range of ten to two AWG. The clamp features a non-insulated design which is ideal for various grounding applications.

• Compatible with 1/2 inch and 5/8 inch rod sizes
• Suitable for conductors ranging from 10 to 2 AWG
• Constructed from corrosion-resistant copper alloy

Product Highlights

This grounding rod clamp ensures a secure and reliable connection essential for proper grounding systems. Its simple and compact design allows for easy installation and long-lasting performance in outdoor environments.

Product Information

Standard Information

• Manufacturer: Blackburn / Thomas & Betts
• Type: Non Insulated

Technical Specifications

• Material: Copper
• Conductor Type: Copper/Solid/Stranded
• Dimensions: 29/32 inch W x 3/8 inch D
• Conductor Size: 10 to 2 AWG
• Rod Size: 1/2 inch, 5/8 inch
• Standards/Approvals: CSA Certified, UL File No. E3060
• Manufacturer Part Number: G5
