ABB G2-12 T&B 2-1 Bare Ring Term

Product Description

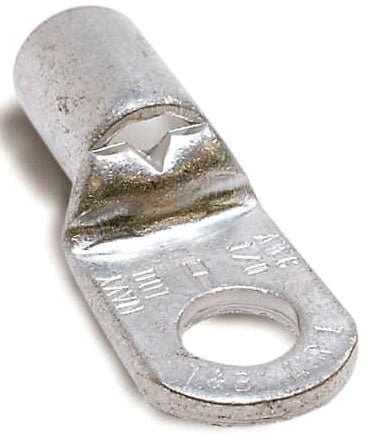

The ABB G2-12 T&B Ring Terminal is a non-insulated terminal designed for use with a two AWG conductor. It features a tubular barrel and a ring tongue. It measures one point seventy-nine inches in length and is made of electrolytic copper, providing excellent conductivity and corrosion resistance.

• Non-insulated design for high performance
• Compatible with both single and double indenter crimping tools
• Includes ten pieces per pack

Product Highlights

Ideal for electrical applications where strong, durable connections are needed.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621087195

Technical Specifications

• Color: Metallic
• Conductor Size: 2 AWG
• Finish: Tin Coated
• Length: 1.79 inches
• Material: Copper
• Temperature Rating: 150 degrees Celsius
• Voltage Rating: 600 VAC
• Standards/Approvals: CSA Certified, UL Listed, UL 94 V-0 Flammability Rated
• Tongue Size: 0.8 inches W x 0.05 inches THK
• Tongue Type: Ring
• Stud Size: 1/2 inch
• Clearance: 0.49 inches
