Product Description

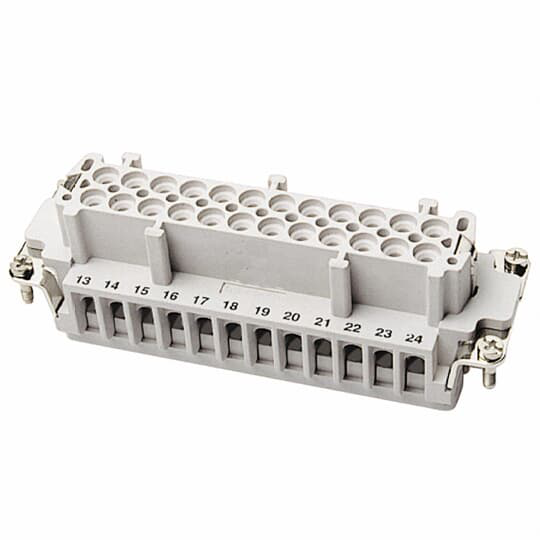

The ABB FS132B Thomas & Betts Female Insert Screw is a rectangular terminal insert designed for use with B Series connectors. It accommodates wire sizes from twenty to fourteen AWG and is rated for sixteen amps and six hundred volts. This product is suitable for panel base applications and features a crimp terminal type for reliable connections.
- For use with B Series Hood and Base
- Standard wire size protection saddles are included
- Temperature range from negative forty to two hundred fifty-seven degrees Fahrenheit
Product Highlights
This terminal insert offers easy terminal wiring and supports fast assembly, enhancing efficiency in electrical installations.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Thomas & Betts Co
Technical Specifications
-
Material: Glass Filled Thermoplastic
-
Current Rating: 16 Amp
-
Voltage Rating: 600 Volt
-
Temperature Rating: -40 to 257 degrees Fahrenheit
-
Wire Size: 20-14 AWG
-
Positions: 32
-
Standards/Approvals: CSA 70013, VDE 0470, IEC 529, UL 94 V-0
