ABB F8007 Thomas & Betts F8007 2 x 16 AWG 2 x 1.50 mm Conductor Range Nylon Insulated Twin Ferrule

Product Description

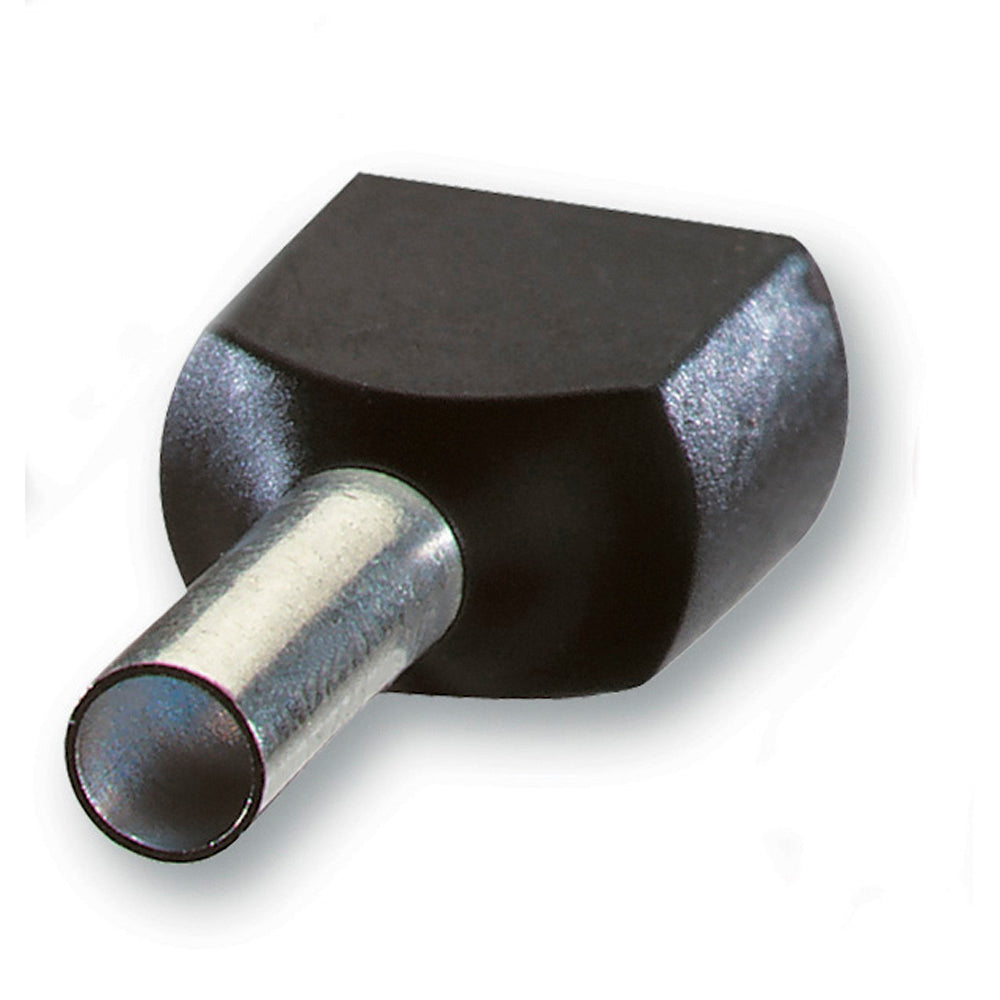

The ABB F8007 is a Thomas & Betts nylon insulated twin ferrule designed for reliability in electrical connections. This ferrule is suitable for use with 16 AWG (2 x 1.50 mm) stranded copper conductors. It features precise dimensions that ensure a secure fit in screw clamp terminal blocks.

• Conforms to DIN 46228, Part 4 standards.
• Dimensions: length measures zero point seven eight seven inches.
• Electro tin plated finish enhances conductivity.

Product Highlights

ABB's F8007 provides secure connections for terminating conductors, making it an essential component for electrical applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• MPN: F8007
• Material: Copper
• Insulation Type: Polypropylene
• Color: Black
• Pin Length: zero point four seven two inches
• Pin Diameter: zero point zero nine one inches
• Base Diameter: zero point two five two inches
• Conductor Range: 2 x 16 AWG
• Temperature Rating: One hundred five degrees C
• Voltage Rating: Three hundred VAC
