Product Description

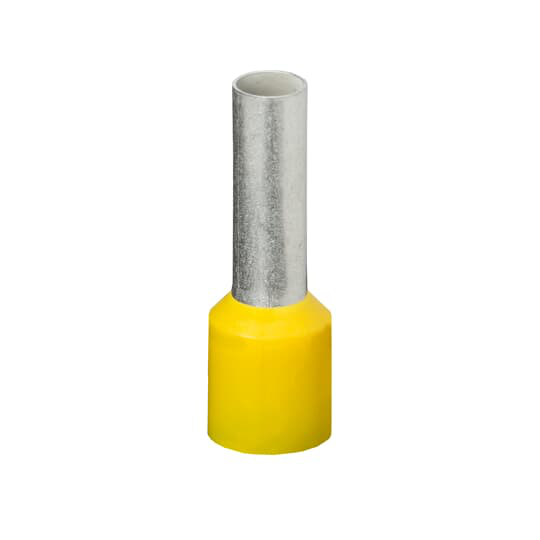

The ABB F4006 is a polypropylene-insulated ferrule designed for effective wire termination. This ferrule is compatible with 24 AWG stranded copper conductors. It features a total length of four hundred sixteen thousandths of an inch and a pin length of two hundred thirty-six thousandths of an inch. The dimensions meet DIN 46228 standards.
- Dimensions conform to DIN 46228 standards
- Prevents fraying and breaking of wire strands
- Electro tin plated for better conductivity
Product Highlights
The ABB F4006 ferrule ensures reliable electrical connections for conductors in various applications. This product is ideal for screw clamp terminal blocks and minimizes the risk of unreliable connections.
Product Information
Standard Information
Technical Specifications
-
Wire Size: 24 AWG
-
Material: Copper
-
Insulation Type: Insulated Nylon
-
Temperature Rating: 105 degrees C
-
Voltage Rating: 300 VAC
-
Finish: Electro Tin Plated
-
Pin Diameter: 0.031 inches
-
Base Diameter: 0.079 inches
