ABB F26 Nonins BS Ring Term, 4, No

Product Description

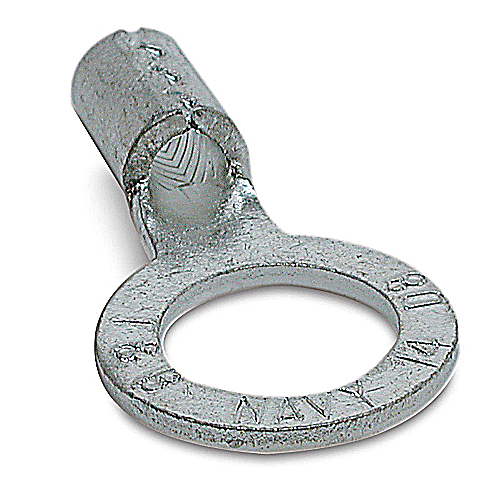

The ABB F26, manufactured by Thomas & Betts, is a non-insulated large brazed seam ring terminal designed for robust wire connections. This terminal measures one point sixteen inches in length and zero point forty-eight inches in width, accommodating a bolt hole size of #10 and a wire range of four AWG.

• Made from high-quality electrolytic copper for optimal conductivity.
• Features a serrated barrel for enhanced grip on wires.
• Suitable for crimping with both single and double indentor tools.

Product Highlights

The ABB F26 ring terminal is ideal for secure connections in various electrical applications. It is tin plated to ensure durability and resistance to corrosion.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Type: Non-Insulated Ring Terminal
• Material: Copper
• Color: Metallic
• Length: 1.16 Inches
• Voltage Rating: 600 Volt
• Wire Size: 4 AWG
• Stud Size: #10
• Temperature Rating: 150 degrees C
