ABB F2029 F Series Insulated Wire Ferrule 300 VAC

Product Description

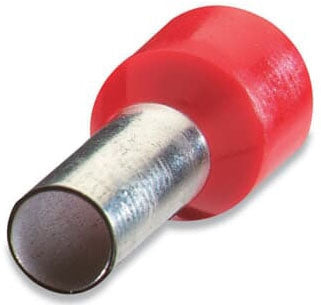

ABB F2029 is a Sta-Kon Insulated Ferrule designed for use with stranded copper conductors. It accommodates wire sizes from eighteen to seventeen AWG and has a length of zero point sixty-five inches. This ferrule is created to ensure reliable connections when terminating conductors in terminal blocks.

• Insulated for secure connections
• Constructed of high conductivity copper
• Long barrel design for easy wire insertion

Product Highlights

This insulated ferrule prevents conductor breakage and reduces the risk of unreliable connections due to wire bending or stress. It is a preferred alternative to traditional wire twisting or tinning methods for enhancing electrical reliability.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621033998

Technical Specifications

• Barrel Size: 0.118 inches Diameter
• Color: Red
• Conductor Size: 18 to 17 AWG
• Conductor Type: Stranded Copper
• Finish: Tin Coated
• Length: 0.65 inches
• Series: F Series
• Voltage Rating: 300 VAC
• Temperature Rating: 105 degrees Celsius
• Standards/Approvals: DIN 46228 Part 4 | UL File No. E489056
