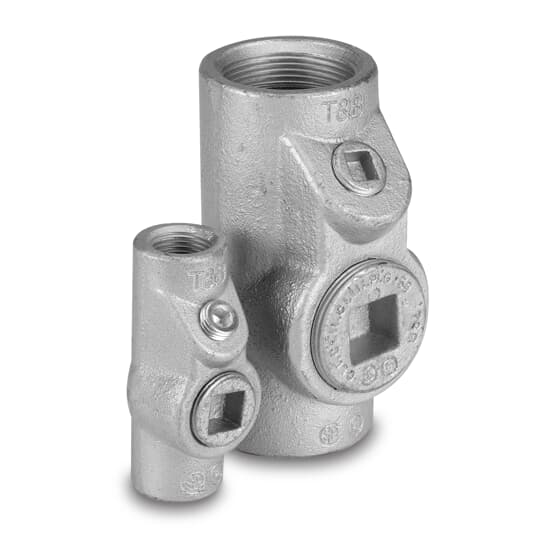

Abb EYS3-TB 1 Inch Eys Drain Seal Sealing Fitting

Product Description

The ABB EYS3-TB is a 1 inch EYS-series drain seal sealing fitting designed for vertical-only installation in hazardous location conduit systems. The body is constructed from ductile iron, with a gray iron plug and steel nipple. This fitting creates a drain seal in electrical conduit runs, preventing the passage of gases, vapors, and flames through the conduit while allowing condensation to drain. It is installed by licensed electricians and industrial maintenance technicians in classified hazardous locations where explosion-proof conduit sealing is required by code.

The EYS3-TB is suited for 1 inch conduit in Class I hazardous location installations, including petrochemical, oil and gas, manufacturing, and industrial processing environments. The vertical-only orientation must be observed during installation to ensure proper drainage function. This fitting is a recognized component in explosion-proof conduit systems governed by NEC Article 500 requirements for sealing and drainage.

Key Features

• 1 inch trade size for standard conduit system compatibility
• Ductile iron body provides strength and corrosion resistance in demanding environments
• Gray iron plug and steel nipple for durable, long-service assembly
• Vertical-only installation design ensures effective condensation drainage
• Explosion-proof rated for use in Class I hazardous locations
• Drain seal function prevents gas and vapor migration through conduit runs

Compatibility

Designed as an OEM-style drain seal sealing fitting for 1 inch explosion-proof conduit systems in vertical installation configurations at classified hazardous locations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC Article 500 and applicable local codes governing hazardous location wiring. De-energize and lock out all circuits before beginning conduit work. The EYS3-TB is rated for vertical installation only — do not install in horizontal or inverted positions. Verify conduit size and thread engagement before final assembly.

Technical Specifications

• Trade Size: 1 inch
• Body Material: Ductile Iron
• Plug Material: Gray Iron
• Nipple Material: Steel
• Orientation: Vertical Only
• UPC: 786210686318

Standard Information

• Brand: ABB
• Manufacturer Part Number: EYS3-TB
