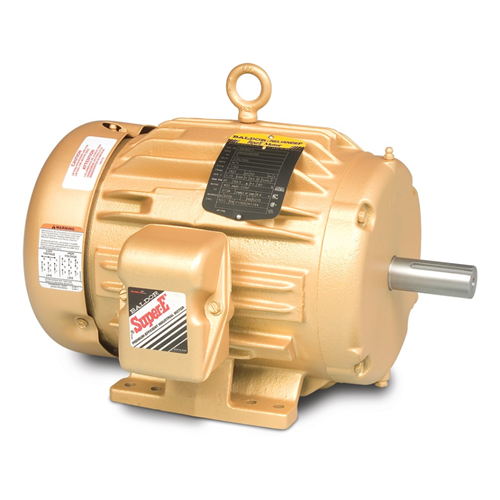

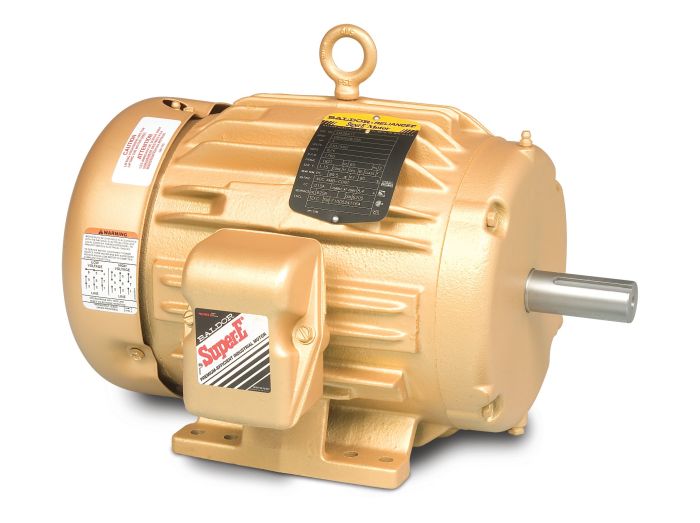

Abb EM3581T Baldor 1HP, 1760RPM, 3PH, 60HZ, 143T

Product Description

The ABB Baldor EM3581T is a motor outputting 1HP, 1760RPM, 3PH, 60HZ, and a 143T frame. It is totally enclosed and fan cooled. This AC electric motor is suitable for general purpose and HVAC applications.

• 1HP
• 1760RPM
• 3PH

Product Highlights

This ABB Baldor motor is designed for general purpose and HVAC applications. It features a cast iron frame and premium efficient design.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: EM3581T

Technical Specifications

• Brand: ABB Baldor
• Product Type: Motors
• Voltage: 230/460 V
• Frame: 143T
• Speed: 1760 RPM
• Current: 3.1 A/208 V 3.0 A/230 V 1.5 A/460 V
• Manufacturer Part Number: EM3581T
• Manufacturer: Baldor-ABB Motors
• Product Series: M
• Type: General Purpose
• Horsepower: 1 hp
• Phase: 3
• NEMA Frame: 143T
• AC Voltage: 208-230 VAC, 460 VAC
• Nominal Voltage: 208 VAC, 240 VAC, 415 VAC, 480 VAC
• Enclosure: Totally Enclosed Fan Cooled
• Mounting: Foot Mount, Rigid
• Current Rating: 1.5 A
• Service Factor: 1.15
• Inverter Duty: No
• Composition: Cast Iron
• Bearing Type: Ball
• Overload Protection: None
• Mounting Design: Foot Mount
• Shaft Grounding Protection: Shaft Grounding Brush
