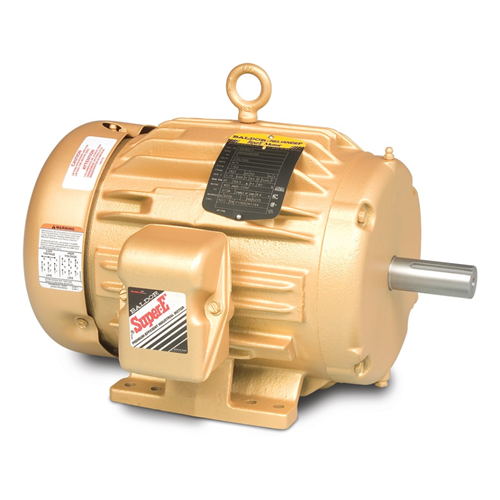

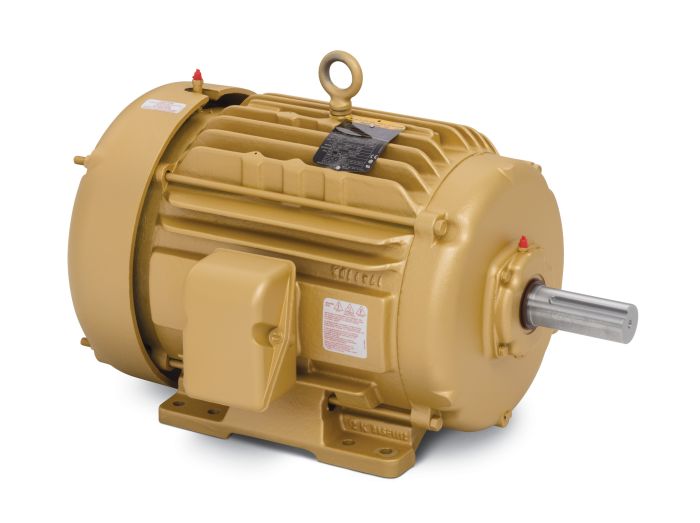

Abb EM2333T 15 HP 1765 RPM 3PH 60HZ 254T 0944M

Product Description

The ABB EM2333T is a 15 HP, 1765 RPM, 3 Phase, 60 Hz motor with a 254T Frame and 0944M motor type. It features a TEFC enclosure and F1 mounting. Suitable for general purpose applications, this motor is inverter ready and designed for reliable performance. Operates at 230/460V with current ratings of 36.2/18.1A.

• TEFC Enclosure
• Inverter Ready
• F1 Mounting

Product Highlights

ABB EM2333T is a 15 HP motor with TEFC enclosure, suitable for various industrial applications. It is inverter ready and features F1 mounting.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: EM2333T

Technical Specifications

• Catalog Number: EM2333T
• Enclosure: TEFC
• Frame: 254T
• Frame Material: Iron
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 15.000 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
• Agency Approvals: CURUSEEV, NEMA PREMIUM
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 36.200 A @ 230.0 V, 38.000 A @ 208.0 V, 18.100 A @ 460.0 V
• Design Code: A
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 92.4 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 18.1 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• KVA Code: H
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 12 AWG
• Motor Type: 0944M
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 23.36 IN
• Power Factor: 84
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.15
• Shaft Diameter: 1.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: Shaft Slinger
• Speed: 1765 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Manufacturer: Baldor-ABB Motors
• Product Series: M
• Description: 15HP, 1765RPM, 3PH, 60HZ, 254T, 0944M
• Type: General Purpose
• Horsepower: 15 hp
• RPM: 1,800 RPM
• NEMA Frame: 254T
• AC Voltage: 230 VAC, 460 VAC
• Nominal Voltage: 208 VAC, 240 VAC, 415 VAC, 480 VAC
• Mounting: Foot Mount, Rigid
• Bearing Type: Ball
• Overload Protection: None
• Voltage: 230/460
• Mounting Design: Foot Mount
• Shaft Grounding Protection: Shaft Grounding Ring
