ABB ELXN400R-2LEDR EMERGI ELXN400 LED Self-Powered Combo Lighting Unit and Exit Sign

Product Description

The ABB ELXN400R-2LEDR is a self-powered combo lighting unit and exit sign. It features a round LED array lamp suitable for both ceiling and wall mounting. This unit operates on 120/277 VAC and includes a battery power source.

• Self-powered with long life LEDs
• Includes two lamps and two heads for enhanced visibility
• UL 924 listed for damp locations

Product Highlights

Ideal for ensuring visibility during emergencies, the EMERGI ELXN400R-2LEDR provides reliable emergency lighting wherever needed.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Product Name: EMERGI ELXN400R-2LEDR

Technical Specifications

• Amperage Rating: 4.06 A
• Average Life: 90 min

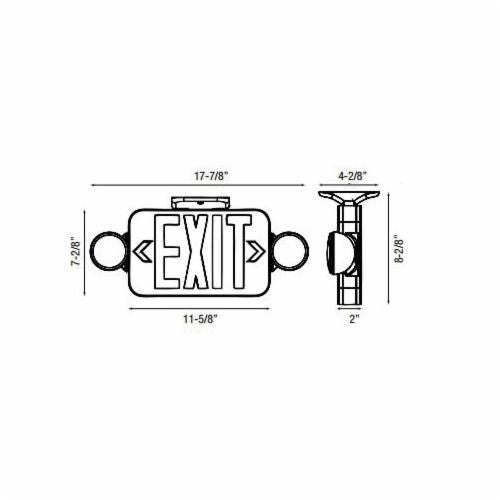

• Dimensions: 8-2/8 in H x 17-7/8 in W x 4-2/8 in D
• Housing Material: Thermoplastic
• Lamp Base Type: Wedge
• Lamp Type: Round LED Array
• Lamp Wattage: 0.037 W
• Legend: EXIT
• Legend Color: Red
• Mounting Type: Ceiling
• Number of Heads: 2
• Number of Lamps: 2
• Power Source: Battery
• Series: ELXN400 LED
• Standards/Approvals: UL 924|NFPA101 (Life Safety Code)|NFPA70 NEC and OSHA Illumination Standard
• Voltage Rating: 120/277 VAC
