ABB ELECTRIFICATION TSMR420CSCU Meter Socket Load Center

Product Description

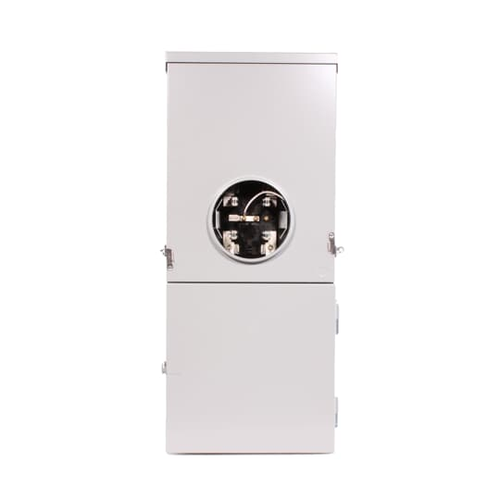

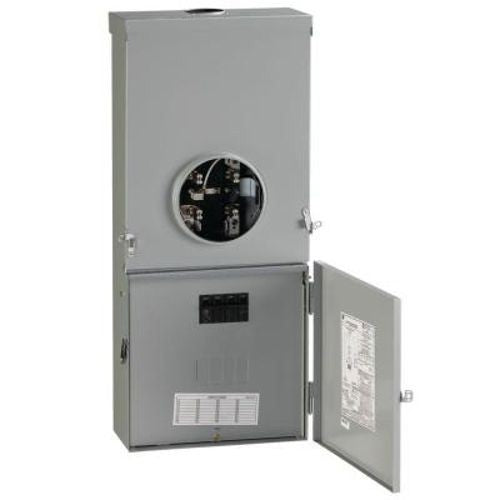

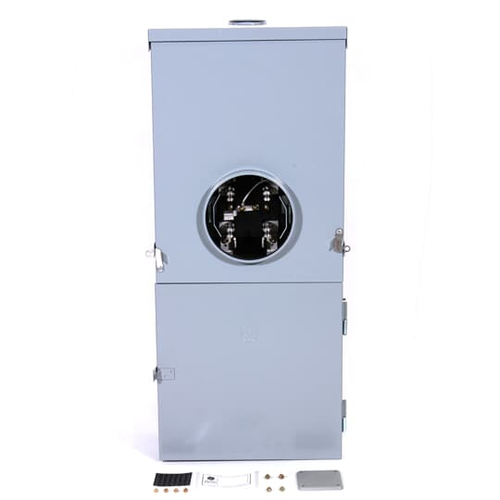

The ABB ELECTRIFICATION TSMR420CSCU is a ringless meter socket load center designed for outdoor use and surface mounting. It includes a 200A main breaker, making it suitable for residential electrical applications. This load center can accommodate both plug-in style circuit breakers, with provisions for one-inch and half-inch breakers. It supports either overhead or underground feed types and comes with a factory-installed ground kit.

• Ringless main breaker meter socket
• Designed for outdoor surface mounting
• Accommodates plug-in style circuit breakers

Product Highlights

This load center is effective in managing power distribution in residential settings.

Product Information

Standard Information

• Brand: ABB Electrification
• Category: Meter Socket Load Center

Technical Specifications

• Input/Output Voltage: 120/240V ac
• Amperage: 200 A
• Phase: 1 Phase
• Enclosure Type: NEMA 3R
• Mounting Type: Surface
• Feed Type: Overhead/Underground
• Dimensions: 33-9/16 inches H x 14-9/16 inches W x 6-3/16 inches D
• Wire Size: 6 AWG to 350 kcmil Al/Cu
• Factory Installed Ground Kit: Yes
