ABB Electrification THN3361SS GE 30A-600V-3PNF SW

Product Description

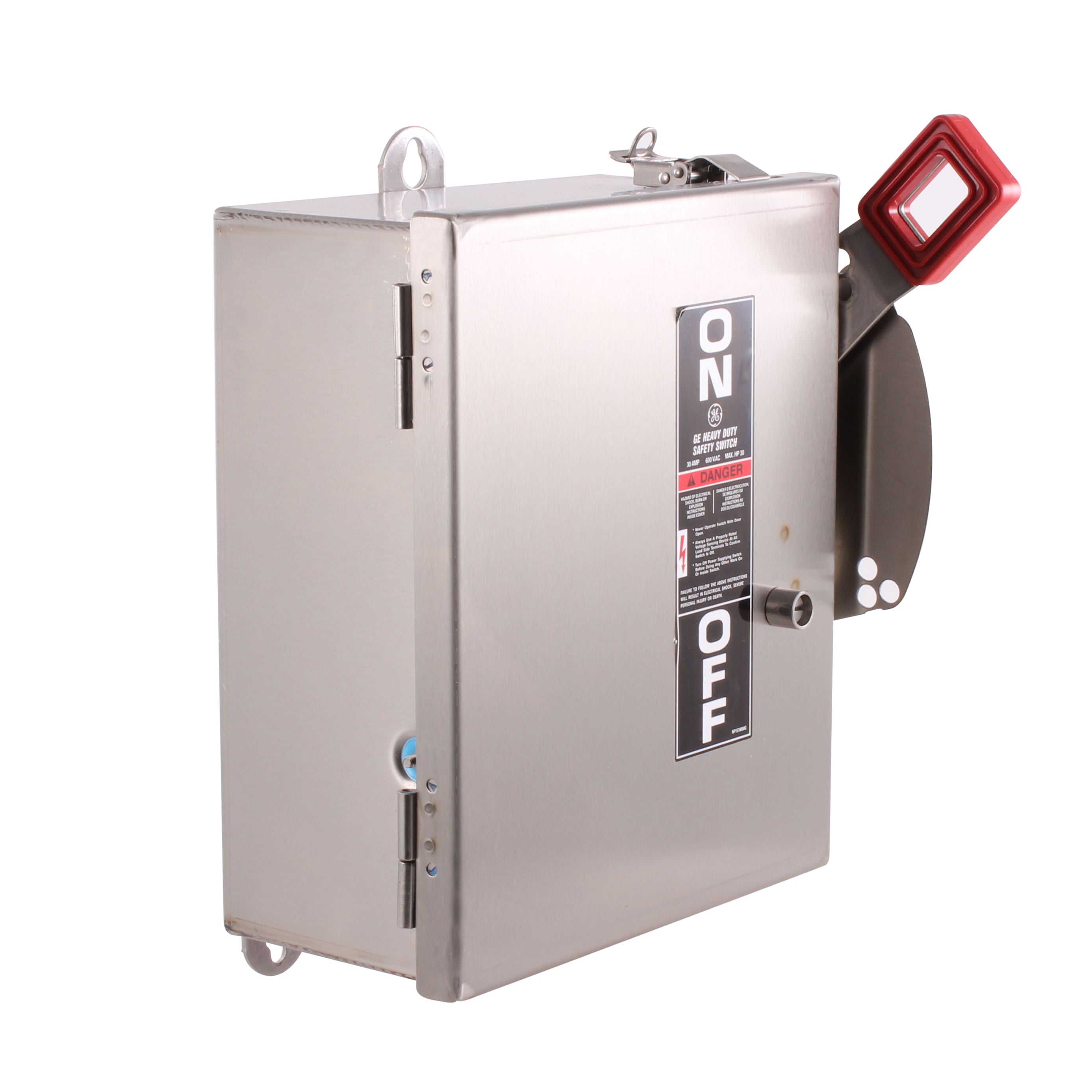

The ABB Electrification THN3361SS is a heavy duty non-fused safety switch designed for commercial and industrial use. It operates at 600 volts and 30 amperes with a 30 horsepower rating. This product features three poles and can handle three wires. It meets high safety standards, ensuring durability and performance.

• Heavy duty design for maximum reliability
• 200 kA short circuit current rating
• NEMA 4/4X enclosure for outdoor applications

Product Highlights

The THN3361SS is ideal for environments where safety and efficiency are critical. It offers features like a handle actuator, self-leveling mount, and suitability for class H, J, K, or R fuses.

Product Information

Standard Information

• Manufacturer: ABB Electrification
• UPC: 78316408935

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Horsepower: 30 hp
• Frequency Rating: 50/60 Hz
• Dimensions: 10.1 in W x 9.4 in D x 11.3 in H
• Material: 304 Stainless Steel
• Mounting Type: 3-Point/Self-Leveling
• Short Circuit Current Rating: 200 kA
• Temperature Rating: 60 to 75 deg C
• Standards/Approvals: cUL Listed, NEMA KS1, UL Listed
