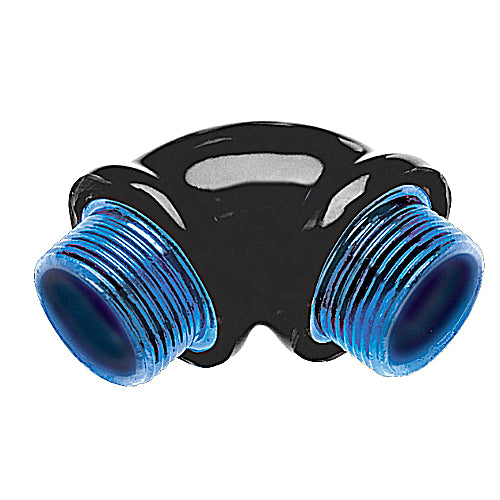

Abb EL296-G Pvc Coated Malleable Elbow 90 Degree 3/4 Inch

Product Description

The ABB EL296-G is a PVC coated malleable elbow designed for changing the direction of threaded, rigid conduit or when terminating at a box or fitting. It features a minimum of .040 inch PVC coating bonded to the exterior. This elbow is suitable for various applications requiring durable and reliable conduit connections.

• A minimum of .040 inch (40 mil) PVC coating is bonded to the exterior.
• Double coated with a nominal .002 inch (2 mil) blue urethane on both the interior and exterior, before PVC coating is applied.
• Pressure-sealing sleeves protect the connections

Product Highlights

Durable PVC coated malleable iron elbow for conduit runs, providing robust protection and secure connections.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: EL296-G
• Country of Origin: US - United States

Technical Specifications

• Category: Pipe and Coupling
• Special Features: Pressure-Sealing Sleeves Protect Connections
• Application: To Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting
• Material: Malleable Iron
• Finish: PVC Coated
• Brand Name: Ocal
• Trade Size: 3/4 in
• RoHS: RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001493 Bend for cable protection tubes
• Material quality: Other
• Surface protection: Untreated
• Colour: Other
• Model: Rigid
• Shape: Outer - and inner side plain
• Angle of bow: 90
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39131708
• Tc Connection: 90 Degree Bend
• Type: 90, Male-Female
• Brand: Thomas & Betts (T&B)
• Part No.: EL296-G
• Manufacturer: ABB Electrification (Thomas and Betts)
• Accessory Type: Adapter
