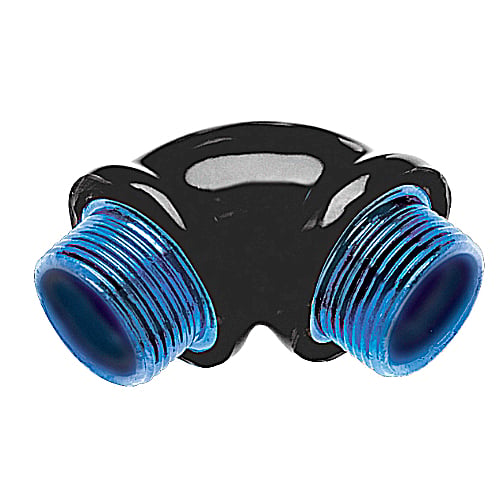

Abb EL195-G Pvc Ctd Elbow Male 90D

Product Description

The ABB EL195-G is a PVC coated malleable elbow, male, 90 degree, pipe size 1/2 Inch/16 Metric, EL Series for the end of conduit runs or to change directions, made of malleable iron, gray.

• A minimum of .040 inch (40 mil) PVC coating is bonded to the exterior.
• Double coated with a nominal .002 inch (2 mil) blue urethane on both the interior and exterior, before PVC coating is applied.
• Pressure-sealing sleeves protect the connections

Product Highlights

This PVC coated elbow is ideal for changing direction for threaded, rigid conduit or when terminating at a box or fitting.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: EL195-G

Technical Specifications

• Category: Electrical conduit elbow
• Special Features: Pressure-Sealing Sleeves Protect Connections
• Application: To Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting
• Material: Malleable Iron
• Color: Gray
• Finish: PVC Coated
• Brand Name: Ocal
• Trade Size: 1/2 in
• Compliance and Certifications: RoHS, RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Connection Type: MNPT
• Size: 1/2 in
• Tc Connection: 90 Degree Bend
• Type: 90
• Brand: ABB
• Sub Brand: Ocal
• Part #: EL195-G
