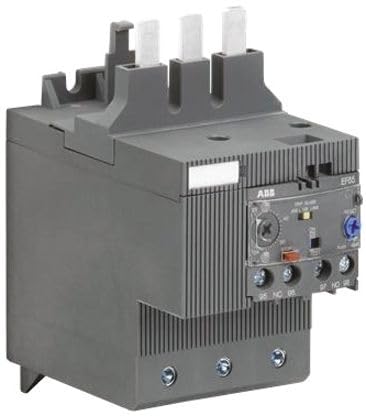

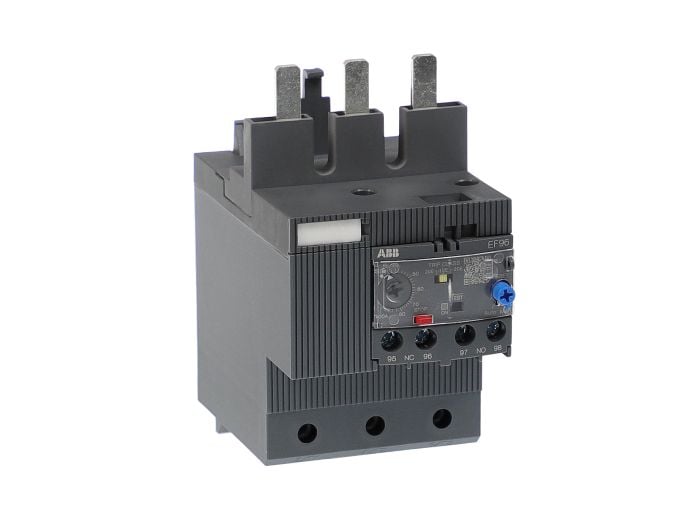

ABB EF96-100 Electronic Overload Relay 36-100 Amp

Product Description

The ABB EF96-100 electronic overload relay provides essential overload protection for your electrical systems. This relay features adjustable current settings and trip classes of 10E, 20E, and 30E. It supports both automatic and manual resets and is sensitive to phase loss. Its design includes sealable operating elements, enhancing durability.

• Overload protection with adjustable trip class selections
• Configured for current range from thirty-six to one hundred amps
• Offers options for automatic or manual reset

Product Highlights

This relay is suitable for a variety of applications requiring reliable overload protection.

Product Information

Standard Information

• Brand: ABB
• Model Number: EF96-100

Technical Specifications

• Connector Type: Screw
• Current Rating: 36-100 A
• Mounting Type: DIN Rail Mount
• Operation Mode: Automatic
• Poles: 3
• Output Contacts: 1NO, 1NC
• Trip Class: Class 10E, Class 20E, Class 30E
• Reset Type: Automatic, Manual
• Connection Type: Screw Terminals
• Ambient Temperature: -13-158 °F
• Approvals: UL
• Contact Current Rating: 100 A
• Control Voltage: 600 V
• Terminal Type: Screw Terminal
