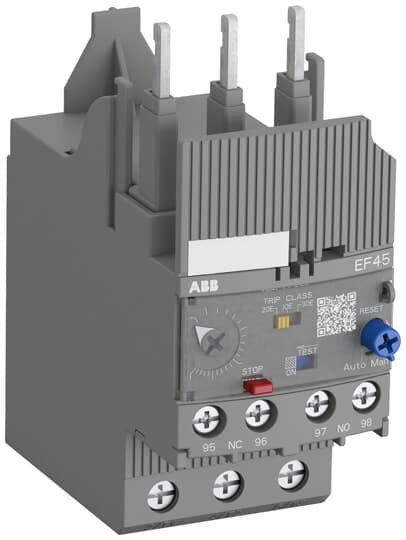

ABB EF45-30 Electronic Overload Relay 9-30 Amp

Product Description

The ABB EF45-30 electronic overload relay is a self-supplied device offering reliable protection for motors in the event of overload or phase failure. Suitable for various industrial applications, it ensures fast response and improved operational safety.

• Automatic or manual reset selectable
• Trip-free mechanism
• Direct mounting onto block contactors

Product Highlights

This electronic overload relay features a selectable trip class of 10E, 20E, or 30E, a built-in phase loss sensitivity, and a temperature compensation range from -25 to 70 degrees Celsius. The adjustable current setting ranges from 9 to 30 amps, making it versatile for different motor sizes and applications.

Product Information

Standard Information

• Brand: ABB
• MPN: EF45-30

Technical Specifications

• Voltage: 600 VAC/VDC
• Amperage: 30 Amp
• Temperature Rating: -25 to 70 degrees Celsius (operation), -50 to 85 degrees Celsius (storage)
• Number of Poles: 3
• Terminal Type: Screw
• Mounting Type: DIN Rail
• Used With: AF09, AF12, AF16, AF26, AF30, AF38 Block Contactors
• UNSPSC Code: 39121521
