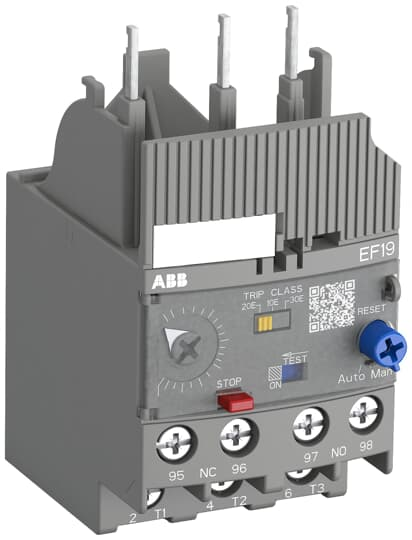

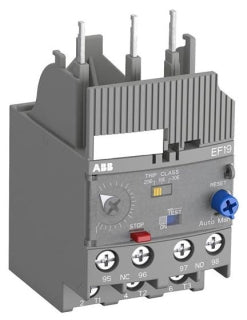

ABB EF19-2.7 3 Pole Electronic Overload Relay 0.8-2.7 Amp Setting Range

Product Description

The ABB EF19-2.7 is a 3 pole electronic overload relay designed to protect motors in the event of overloads or phase failures. This relay operates within a current setting range of zero point eight to two point seven amperes. It is suitable for use with standard motor applications and offers reliable motor protection.

• Self-supplied design needs no extra external power supply
• Wide setting range with high accuracy
• Compatible with standard motor applications

Product Highlights

Reliable electronic overload relay with automatic/manual reset options, capable of supporting various trip classes.

Product Information

Standard Information

• Brand: ABB
• MPN: EF19-2.7

Technical Specifications

• Type: Electronic overload relay
• Voltage Rating: 600 VAC/VDC Auxiliary, 690 VAC Main
• Amperage: 0.8-2.7 Amp
• Number of Poles: 3
• Temperature Rating: -25 to 70 degrees C
• Enclosure Rating: IP20
• Approval: UL, CUL
• Trip Class: Class 10E, 20E, 30E
• Conductor Size: 16-10 AWG
