Abb E950JG-CAR Reducer Bushing 2x1-1/4 Inch Schedule 40

Product Description

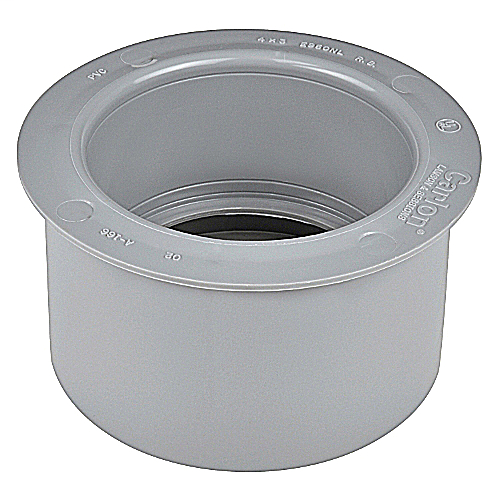

The ABB E950JG-CAR is a 2 inch x 1-1/4 inch reducing bushing designed for use with Schedule 40 rigid non-metallic conduit systems. This fitting steps down conduit trade size at junction points, pull boxes, or enclosure knockouts where a larger conduit run transitions to a smaller diameter. It is a standard component in PVC conduit installations and is installed by licensed electricians working on residential, commercial, or industrial wiring systems that require NEC-compliant raceway protection.

This reducing bushing is used wherever a 2 inch rigid non-metallic conduit system must connect to a 1-1/4 inch conduit section or fitting. Typical applications include panel feeders, underground runs, and conduit bodies where trade size changes are necessary within a single raceway system. It is suited for both indoor and outdoor installations where Schedule 40 PVC conduit is the specified raceway type.

Key Features

• Reduces from 2 inch to 1-1/4 inch conduit trade size in a single fitting
• Compatible with Schedule 40 rigid non-metallic conduit systems
• Designed for use at enclosure knockouts, pull boxes, and conduit transitions
• Non-metallic construction resists corrosion in damp or wet locations

Compatibility

Designed as an OEM-style replacement fitting for Schedule 40 rigid non-metallic conduit systems requiring a 2 inch to 1-1/4 inch trade size reduction.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for raceway systems. De-energize all circuits in the affected conduit run before beginning work. Use appropriate PVC conduit cement and primer when solvent-welding this bushing to conduit or fittings as required by the installation method. Do not overtighten threaded connections on non-metallic fittings, as excessive force can crack the fitting body.

Technical Specifications

• Inlet Trade Size: 2 inches
• Outlet Trade Size: 1-1/4 inches
• Conduit Schedule: Schedule 40
• Conduit Type: Rigid Non-Metallic (PVC)
• UPC: 03448113052

Standard Information

• Brand: ABB
• Manufacturer Part Number: E950JG-CAR
