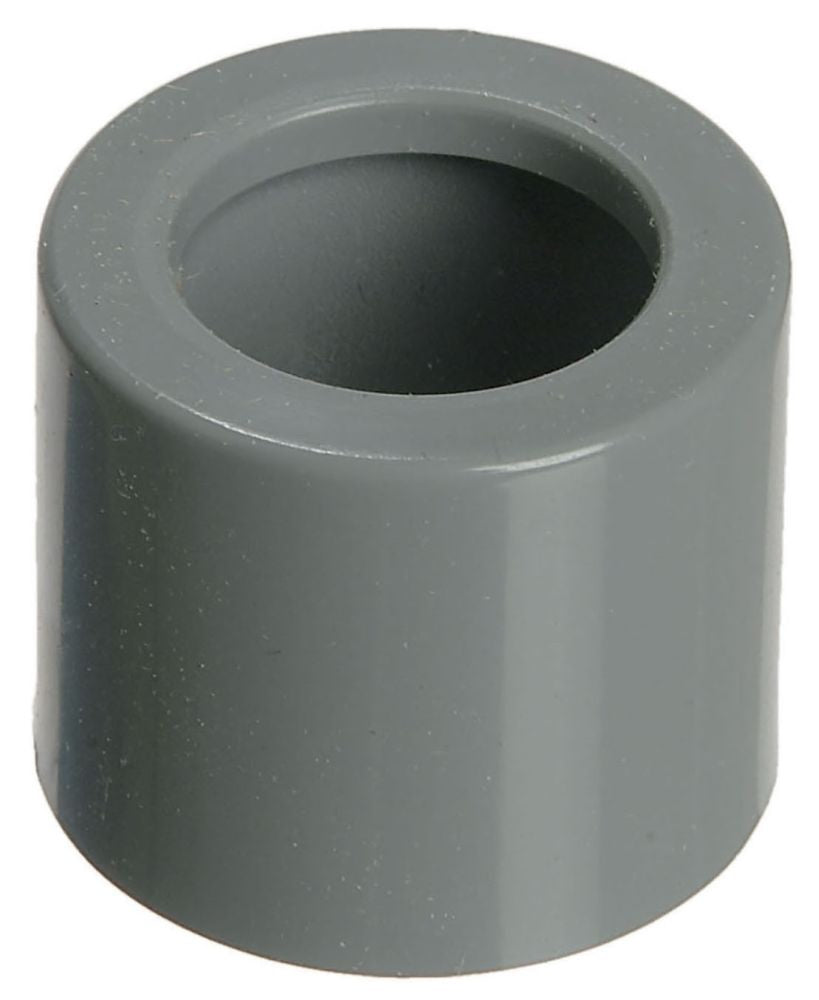

Abb E950GE-CAR Pvc Conduit Reducer 1-1/4 to 3/4 Inch

Product Description

The ABB E950GE-CAR is a PVC conduit reducer fitting used to transition between 1-1/4 inch and 3/4 inch trade-size conduit runs. This fitting accepts a larger conduit on one end and a smaller conduit on the other, allowing electricians to step down conduit size within a raceway system without cutting or splicing additional components. Weighing 6.25 pounds and sized at 6 inches x 4 inches x 6 inches, it is built for standard electrical conduit installations in both new construction and retrofit work. Installers use it wherever conduit diameter changes are required along a run.

This reducer fits into residential, commercial, and light industrial conduit systems wherever a 1-1/4 inch to 3/4 inch step-down transition is needed. It is suited for use with Schedule 40 and Schedule 80 PVC conduit systems in indoor and outdoor applications. Electrical contractors and licensed electricians are the primary installers, integrating this fitting into branch circuit and feeder conduit runs during rough-in stages of construction or during conduit system modifications.

Key Features

• Transitions from 1-1/4 inch to 3/4 inch trade-size conduit in a single fitting
• PVC construction provides corrosion resistance for indoor and outdoor conduit runs
• Compact form factor at 6 inches x 4 inches x 6 inches simplifies installation in tight conduit layouts
• Compatible with standard PVC conduit solvent-weld assembly methods

Compatibility

Designed as an OEM-style replacement fitting for PVC conduit systems requiring a 1-1/4 inch to 3/4 inch reducer transition in standard electrical raceway installations.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits in the affected conduit run before beginning work. Apply PVC solvent cement to both the fitting socket and the conduit end per the cement manufacturer instructions, and allow adequate cure time before pulling wire. Do not force conduit into the fitting or use heat to soften PVC during assembly unless specifically permitted by the conduit system design.

Technical Specifications

• Material: PVC
• Inlet Size: 1-1/4 inches
• Outlet Size: 3/4 inches
• Package Dimensions (L x W x H): 6 inches x 4 inches x 6 inches
• Weight: 6.25 pounds
• UPC: 03448113048

Standard Information

• Brand: ABB
• Manufacturer Part Number: E950GE-CAR
