ABB E945D Conduit Expansion Coupling 1/2 in For Use With SCH 40 and SCH 80 Conduit

Product Description

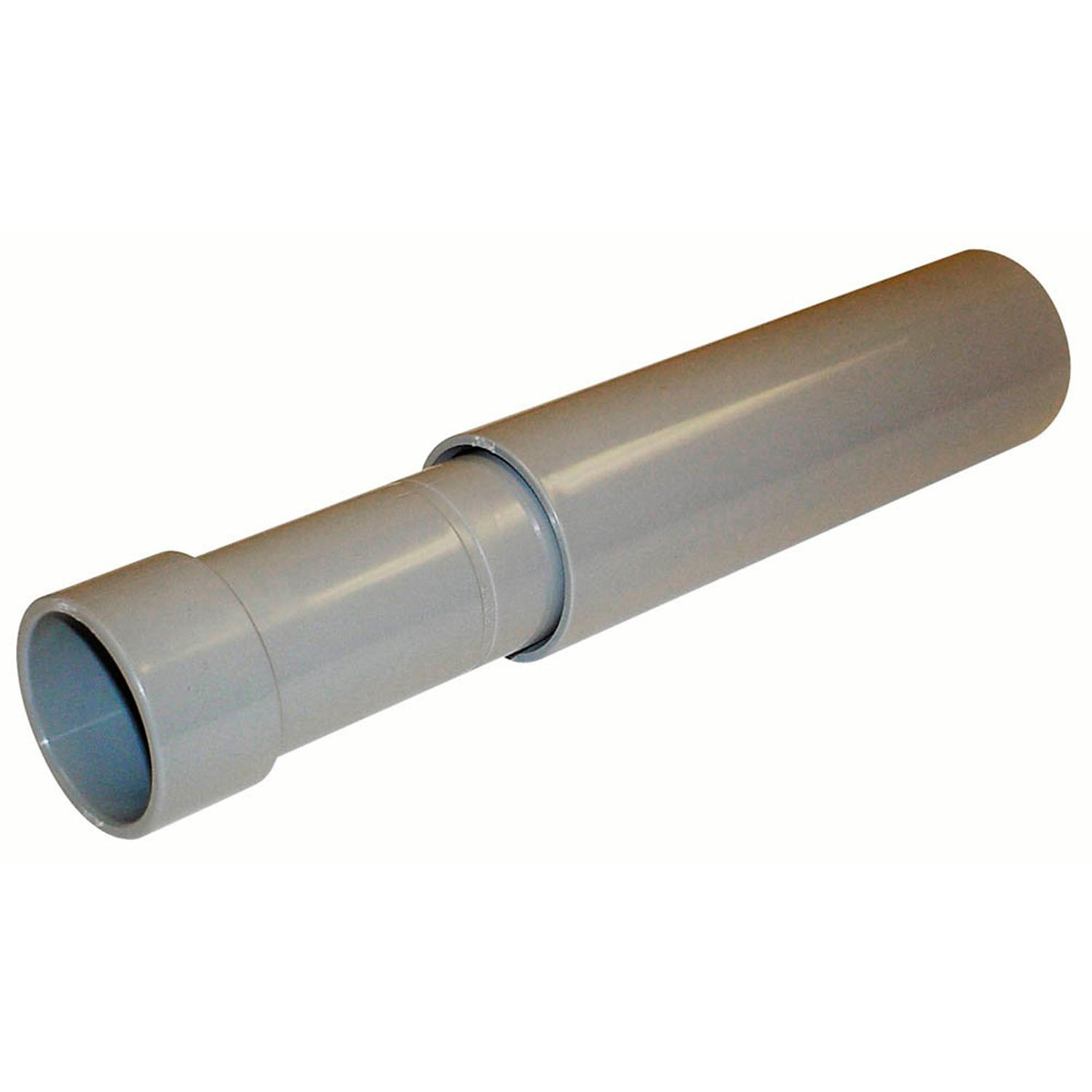

ABB E945D is a conduit expansion coupling suitable for use with Schedule 40 and Schedule 80 conduit systems. This coupling is made from PVC and features a nominal size of one half inch with an outside diameter of one point fifteen inches. The product is designed for environments where expansion and contraction can affect conduit length due to temperature changes.

• Designed for Schedule 40 and Schedule 80 conduits
• Constructed from PVC with an outside diameter of one point fifteen inches
• Can be installed horizontally or vertically

Product Highlights

The E945D coupling is engineered for effective performance in conduit systems. It allows for adjustments in length due to thermal expansion, ensuring reliable and secure connections.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 03448106121

Technical Specifications

• Application: For compensating the length changes due to temperature variations in exposed conduit runs
• Color: Gray
• Dimensions: 1.15 inches OD
• Manufacturer Part Number: E945D
• Material: PVC
• Series: E945
• Size: 1/2 inch
• Standards/Approvals: cULus File No. E32447 | UL File No. E23018
• Suitable For Use With: Schedule 40 and 80 Conduit
