Product Description

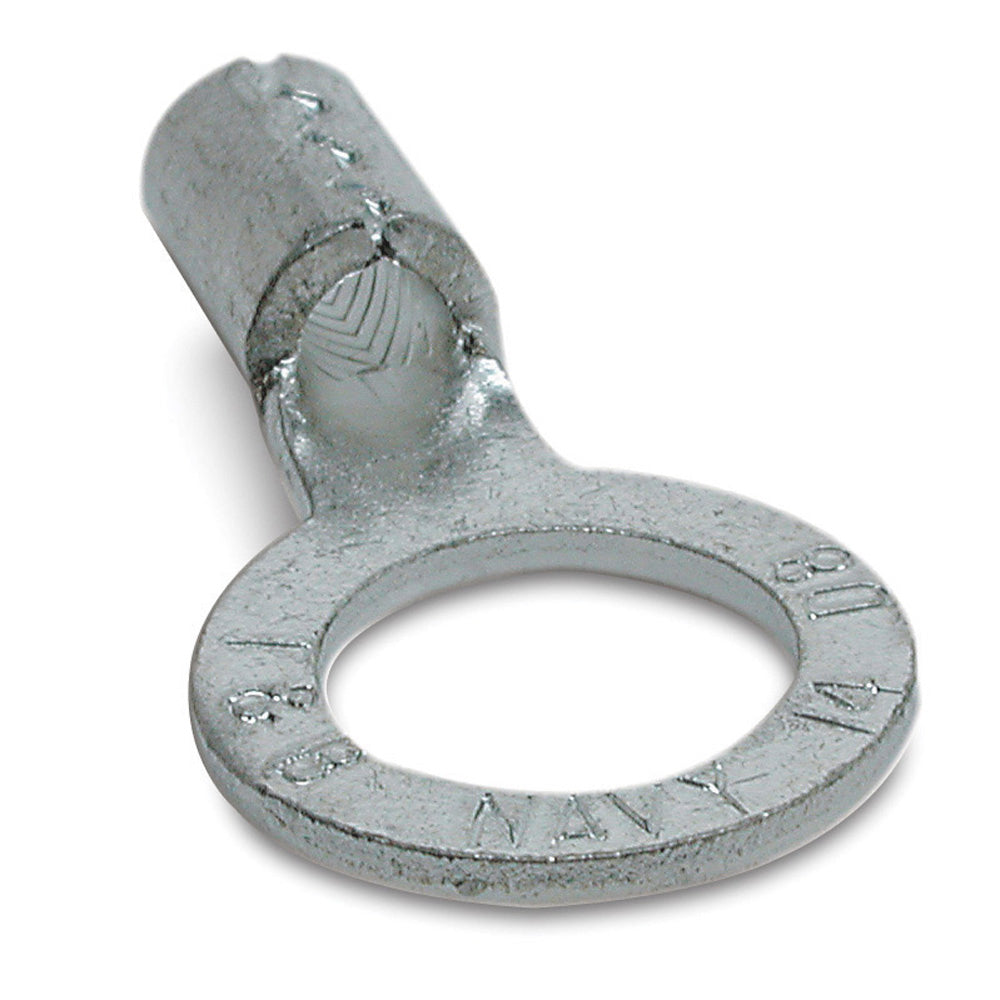

ABB E6-516 is a non-insulated ring terminal designed for use with six AWG conductors. This product features a five-sixteenth inch stud size and is built for durability and reliability in electrical connections.
- Non-insulated, fabricated from electrolytic copper for high conductivity.
- Suitable for installation with single or double indenter crimping tools.
- Comes in a pack of twenty pieces.
Product Highlights
These terminals provide a strong and secure connection for critical electrical applications.
Product Information
Standard Information
-
Manufacturer: ABB - Installation Products
-
Conductor Size: 6 AWG
Technical Specifications
-
Application: For WT115A, TBM6, TBM6S and WT3185 tools
-
Color: Metallic
-
Finish: Tin Coated
-
Length: 1.32 in
-
Material: Copper
-
Series: E Series
-
Stud Size: 5/16 in
-
Temperature Rating: 150 deg C
-
Tongue Size: 0.6 in W x 0.06 in THK
-
Tongue Type: Large Ring
-
Voltage Rating: 600 VAC
-
Specifications: 0.49 in Clearance
-
Standards/Approvals: UL Listed, UL 94 V-0 Flammability Rated, CSA Certified, UL File No. E9809
