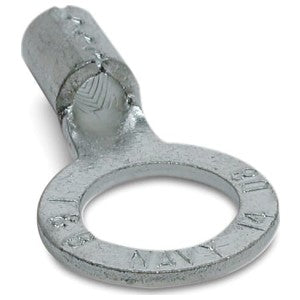

Abb E6-12 Sta-Kon Large Brazed Seam Ring Terminal, Hole 1/2 inches, 6 Awg

Product Description

The ABB Sta-Kon E6-12 is a non-insulated, brazed seam ring terminal designed for a wire range of 6 and a stud size of 1/2. Constructed from electrolytic copper, this ring terminal ensures high conductivity. It can be installed using crimping tools with either a single or double indentor, with the latter recommended for solid wire applications.

• Non-Insulated
• Brazed Seam
• Ring Terminal
• Stud Size 1/2

Product Highlights

The ABB Sta-Kon E6-12 ring terminal features a serrated barrel for increased wire grip and is suitable for various electrical connections.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: E6-12
• Country of Origin: US - United States

Technical Specifications

• UNSPSC Code: 26120000
• Brand: Sta-Kon by ABB
• Color: Natural
• Family Name: Sta-Kon and Catamount Terminal
• Insulation Type: Non-Insulated
• Manufacturer Part Number: E6-12
• Primary Type: Ring
• Series: E6 Series
• Special Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
• Stud Size: 1/2 in
• Type: Ring Terminal
• Unit of Measure: EA
• UPC Code: 786210878454
• Wire Size: 6 AWG
• ECCN: EAR99
• UNSPSC: 39121432
• Packaging: 20 Per Package
• Standard: UL E9809 / UL E9809
