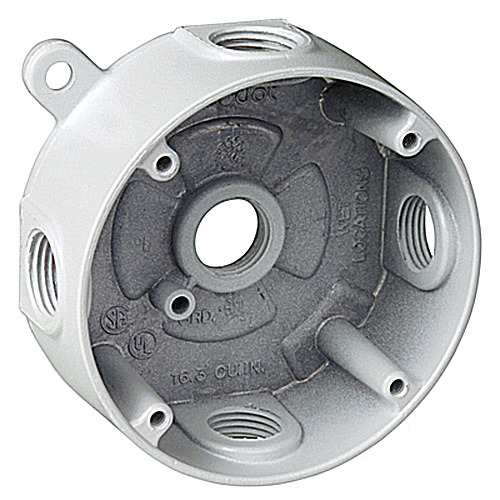

ABB DS-47-WH Red Dot 5-Hole 1/2 Inch Shrink Wrap Round Box

Product Description

The ABB DS-47-WH is a round outlet box designed for electrical applications. This model features five outlets, making it suitable for various installations. With a hub size of one-half inch and a diameter of four and one-eighth inches, this box can accommodate multiple wiring needs.

• Constructed from die cast aluminum for durability.
• Rain tight when used with compatible Red Dot covers.
• Clear UL and cubic content markings facilitate approval by inspectors.

Product Highlights

This outlet box provides a spacious wiring chamber for easier installations and maintenance. It is designed as a junction box for branch conduits and offers a convenient location for wire pulling and splicing.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: DS-47-WH

Technical Specifications

• Color: White
• Diameter: 4-1/8 inches
• Depth: 41.27 mm
• Material: Die Cast Aluminum
• Hub Size: 1/2 inch
• Mounting Type: Lug
• Number of Outlets: 5
• Standards/Approvals: UL File No. E286881
