Abb DRAF16-13U Encl 4X Str 16Amp 600VAC 3Ph 100-250VAC/DC Coil

Product Description

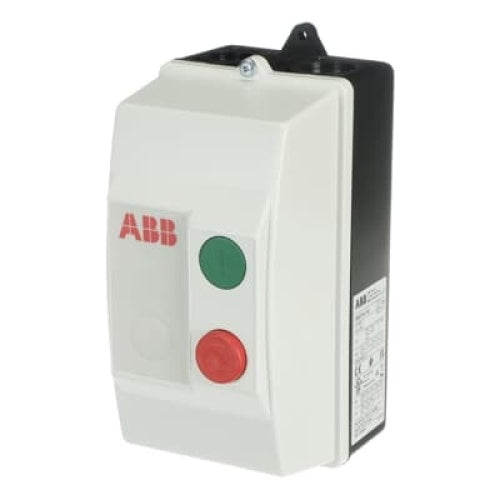

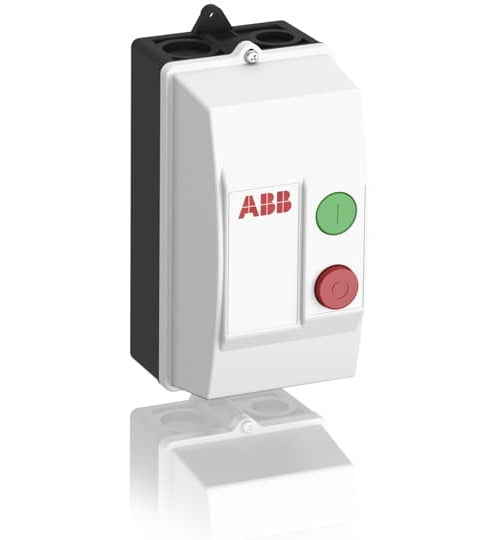

The ABB DRAF16-13U is an enclosed Direct-On-Line starter with an AF contactor used for controlling 3-phase asynchronous motors up to 690 V AC. It features a robust IP66 and type 4X enclosure with double electrical insulation. Suitable for motor protection and control applications.

• Easy to connect and operate with pre-wired control circuit.
• High number of electrical and mechanical operations.
• Suitable for controlling 3-phase asynchronous motors up to 690 VAC.

Product Highlights

Enclosed Direct-On-Line starter with IP66 and type 4X enclosure, pre-wired control circuit, and double electrical insulation.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: DRAF16-13U
• Country of Origin: United States

Technical Specifications

• Type: MOTOR STARTERS/PROTECTION
• Action: Direct On-Line Contactor
• Amperage Rating: 30/18 A
• Control Type: Enclosed
• Motor Power: 1.5, 3 hp
• Brand: ABB Electrification
• Amperage: 16 A
• Auxiliary Contacts: 1NC-1NO
• Coil Voltage: 100-250 VDC
• Connection Type: Screw
• Contact Configuration: 1NO/1NC
• Enclosure Material: ABS
• Number of Contacts: 2 Contacts
• Number of Poles: 3
• Phase: Three Phase
• Power Rating: 9 kW
• Product Type: Enclosed Motor Starter
• Special Rating: NEMA 4X
• Voltage: 600 V AC
• Starter Poles: Three Pole
• Manufacturer: ABB
