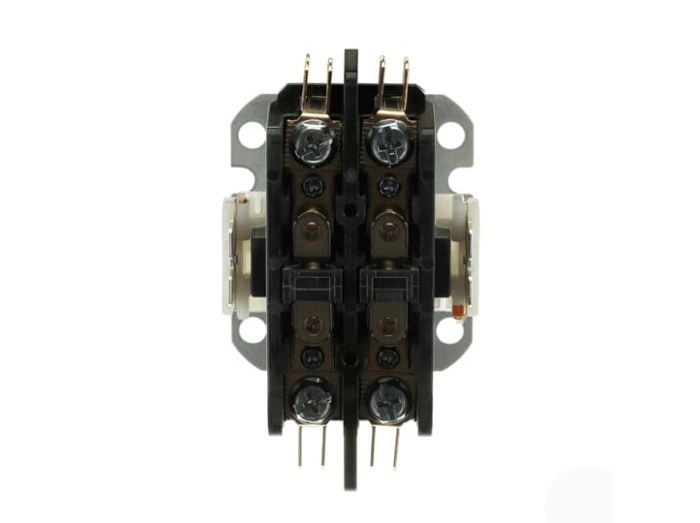

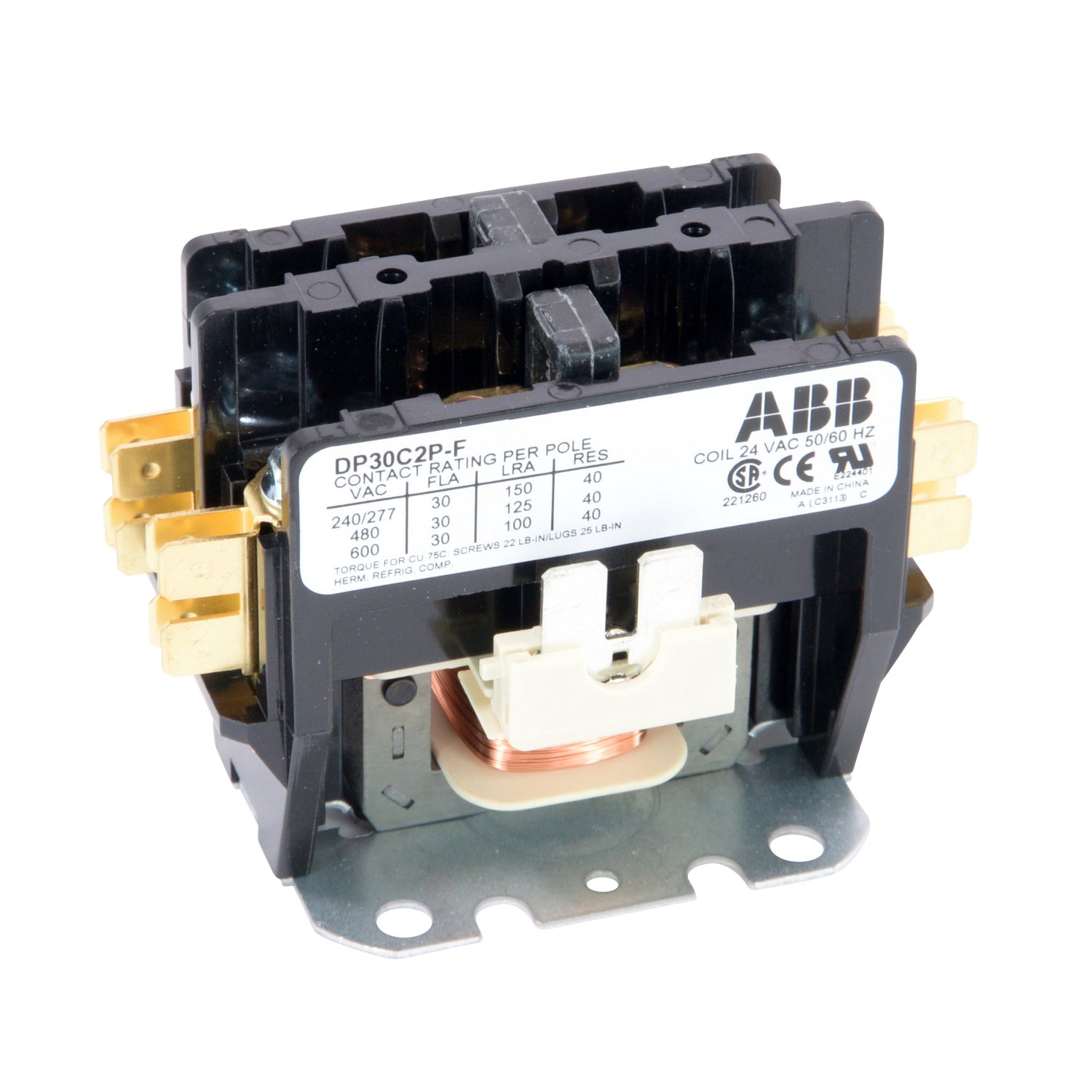

Abb DP30C2P-F Contactor 30A 2-Pole Non-Reversing 24V AC Coil

Product Description

The ABB DP30C2P-F is a 30A 2-pole non-reversing definite purpose contactor with a 24V AC coil and industry standard mounting plate. Designed for HVAC and refrigeration equipment operation and control. It meets UL, CSA, and IEC standards. Ideal for resistive heating, motors, compressors, and food service equipment.

• 24~575 VAC Coils
• Up to 25 HP @ 240V
• Up to 30 HP @ 480V
• UL; CE; IEC Agency Approvals

Product Highlights

The ABB DP series contactors offer high performance, flexibility, and reliability for various applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: DP30C2P-F

Technical Specifications

• Applications: Designed for HVAC and refrigeration equipment operation and control
• Coil Voltage: 24 V
• Conductor Size: 16-8 AWG
• Contact Configuration: 2 NO
• Number of Poles: 2
• Standard: CSA,UL
• Temperature Rating: 130 degrees C
• Type: Contactor, Definite Purpose
• Brand: ABB
• Manufacturer Part Number: DP30C2P-F
• Manufacturer: ABB
• Product Series: DP
• Family Series: ABB Contactors, DP Series
• Nominal Coil Voltage: 24 VAC
• Coil Type: Magnetic
• Inductive Current Rating: 30 A
• Frame Size: 30
• Termination: Box Lug, Quick Connect
• Shunt: No
• Enclosure: Open
• Resistive Rating: 40 A
• Approvals: CSA, UL
• Contact Current Rating: 30 A
• Control Voltage: 24 V
• Mounting Type: Panel Mount
• Series: DP Series
• Poles: 2
• Volts AC Control: 24
• Amps: 40
• Volts AC: 600
