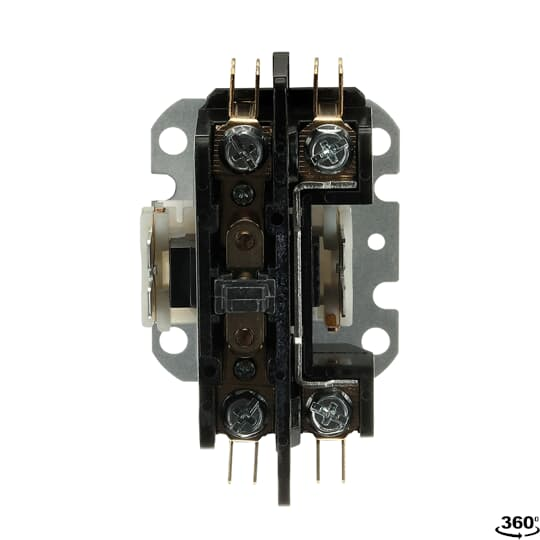

Abb DP30C1P-1 Definite Purpose Contactor 30A 1 Pole 120V

Product Description

The ABB DP30C1P-1 is a single-pole definite purpose contactor rated at 30 amps and designed for 120-volt, 60 Hz control circuits. It functions as an electrically operated switching device that opens and closes a load circuit on command from a low-voltage control signal. Definite purpose contactors like this one are used throughout commercial and light industrial applications where a dedicated, reliable switching solution is required. The DP30C1P-1 meets UL, CSA, and IEC standards, making it acceptable for jobs that require listed components. Licensed electricians and HVAC technicians are the primary installers.

This contactor is well suited for HVAC systems, food service equipment, refrigeration systems, and welding applications. It fits into control panels and equipment enclosures where a 30-amp, single-pole switching device is called for. The industry-standard mounting plate design provides accessible mounting holes, allowing straightforward integration into existing panel layouts without custom fabrication or adapter hardware.

Key Features

• 30-amp load rating suitable for HVAC compressors, refrigeration equipment, and food service loads
• Single-pole configuration for straightforward load switching applications
• 120-volt, 60 Hz coil voltage matches standard North American control circuits
• UL, CSA, and IEC listed for broad compliance across commercial and industrial job requirements
• Industry-standard mounting plate with accessible mounting holes for fast panel installation

Compatibility

Designed as an OEM-style replacement or new-installation definite purpose contactor for HVAC, refrigeration, food service, and welding equipment requiring a 30-amp single-pole 120-volt switching device.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before removing an existing contactor or wiring the new unit. Verify coil voltage and load ampacity match the circuit requirements before energizing. Inspect all terminal connections for proper seating and tightness before returning the equipment to service.

Technical Specifications

• Amperage Rating: 30 amps
• Number of Poles: 1
• Coil Voltage: 120 volts, 60 Hz
• Certifications: UL, CSA, IEC
• UPC: 662019754154

Standard Information

• Brand: ABB
• Manufacturer Part Number: DP30C1P-1
