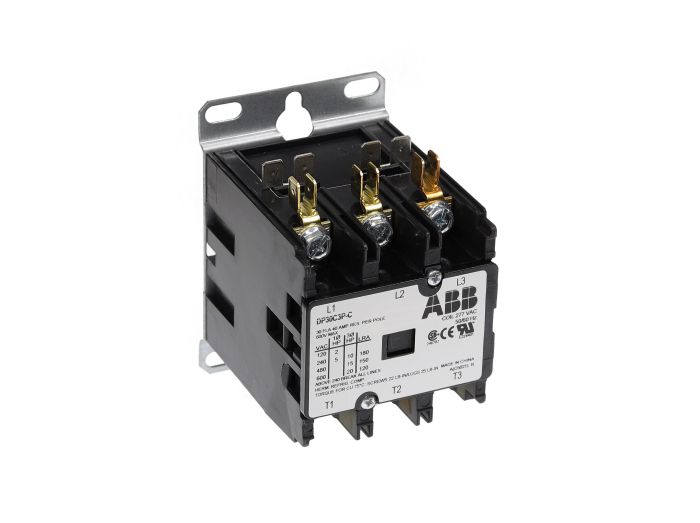

ABB DP25C3P-2 DP CNTR 3P 25A 208/240/60

Product Description

The ABB DP25C3P-2 DP CNTR 3P 25A 208/240/60 is a contactor suitable for various applications. This includes HVAC systems, food service equipment, refrigeration, and welding tasks. It operates on 208/240 VAC coils and can handle a maximum load current of twenty-five amperes at fifty or sixty hertz.

• Standard arc cover for added protection.
• Compatible with 32 to 6 AWG screws and quick connect terminals.
• Double E magnet assembly for efficiency.

Product Highlights

This product features a design that ensures reliability and performance across multiple sectors requiring electrical control.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: DP25C3P-2

Technical Specifications

• Contact Current Rating: 25 A
• Mounting Type: Panel Mount
• Number of Poles: 3
• Terminal Type: Screw Terminal
• Coil Voltage: 208/240 VAC
• Maximum Load Current: 25 A
• Coil Power Rating: 5 hp, 20 hp
• Frequency Rating: 50/60 Hz
• Contact Configuration: 1NC-1NO
• Number of Auxiliary Contacts: 2
• Size: DP25C3P
• Enclosure Type: NEMA ICS 5
• Operating Cycles: 30000 to 100000 Cycles
• Operating Temperature: -40 to 150 deg F
• Material: Polyester
• Dimensions: 3.25 in H x 2.37 in W x 2.91 in D
• Nominal Coil Voltage: 48 VAC, 208 VAC, 240 VAC
• Approvals: CSA, IEC, UL
• Net Weight: 0.96 lbs
• Gross Weight: 1 lb
