ABB DG4X1C-200 CAR-TEL 1-1/4 R/G PVC CORR ORG TAPE

Product Description

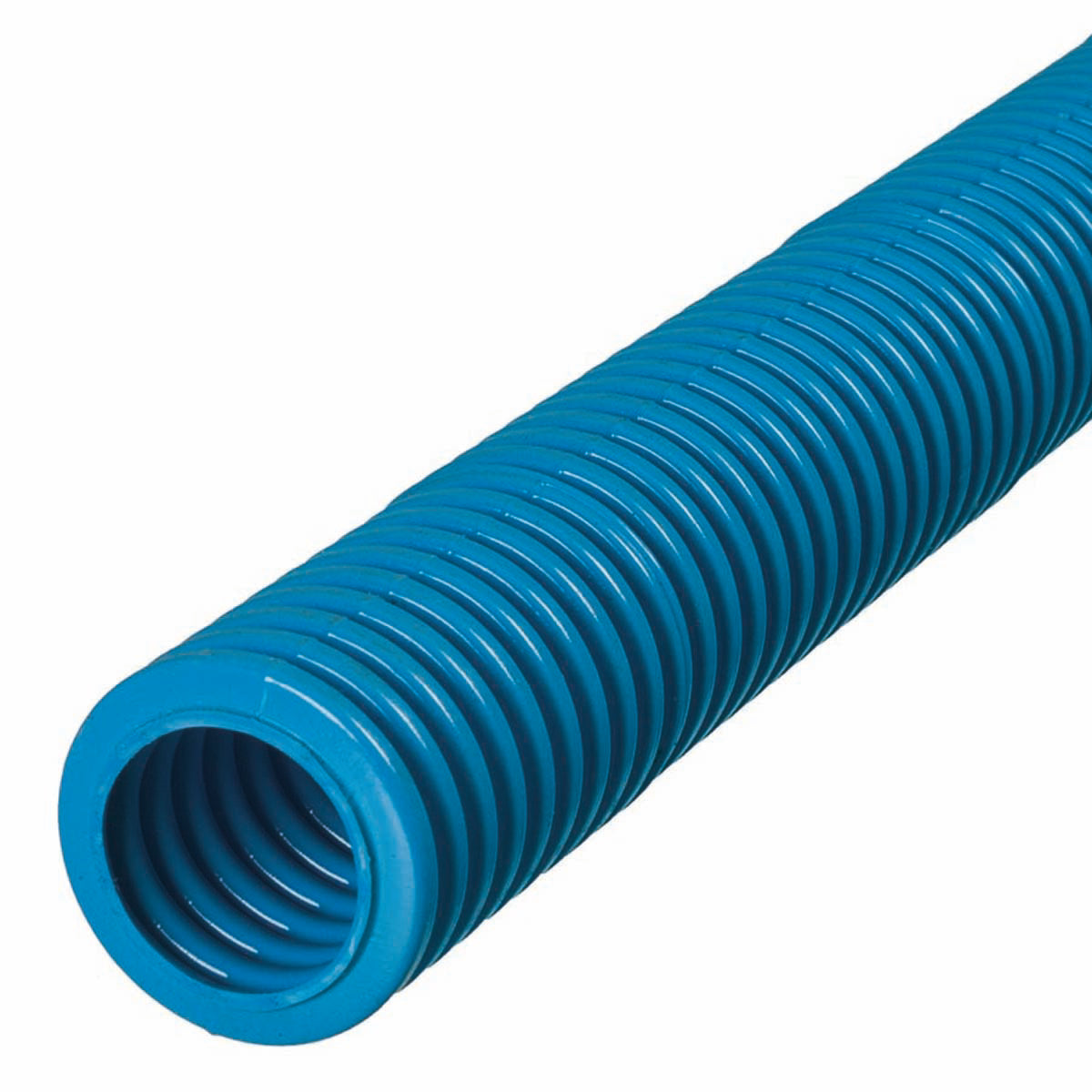

ABB DG4X1C-200 CAR-TEL is a non-metallic flexible raceway designed for riser and general purpose applications. This conduit measures one and one-quarter inches with an inside diameter of one point thirty-one inches and an outside diameter of one point sixty-seven inches. The total length of the conduit is two hundred feet. It is made from PVC material and is suitable for various cabling applications.

• Pull tape can be factory pre-installed for sizes one through three inches.
• Meets IPS dimensions for outside diameters.
• Footage is sequentially marked for easy installation and management.

Product Highlights

The Riser-Gard conduit is designed for vertical runs and is suitable for direct burial. It is not approved for exposed applications.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Product Name: DG4X1C-200 CAR-TEL 1-1/4 R/G PVC CORR ORG TAPE

Technical Specifications

• Trade Size: 1-1/4 in
• Length: 200 ft
• Material: PVC
• Inside Diameter: 1.31 in
• Outside Diameter: 1.67 in
• Bend Radius: 8 in
• Temperature Rating: -4 to 104 deg F
• Application: For riser, general purpose, and cabling optical fiber/telecommunication
• Standards/Approvals: cULus Listed | UL File No. E151168
