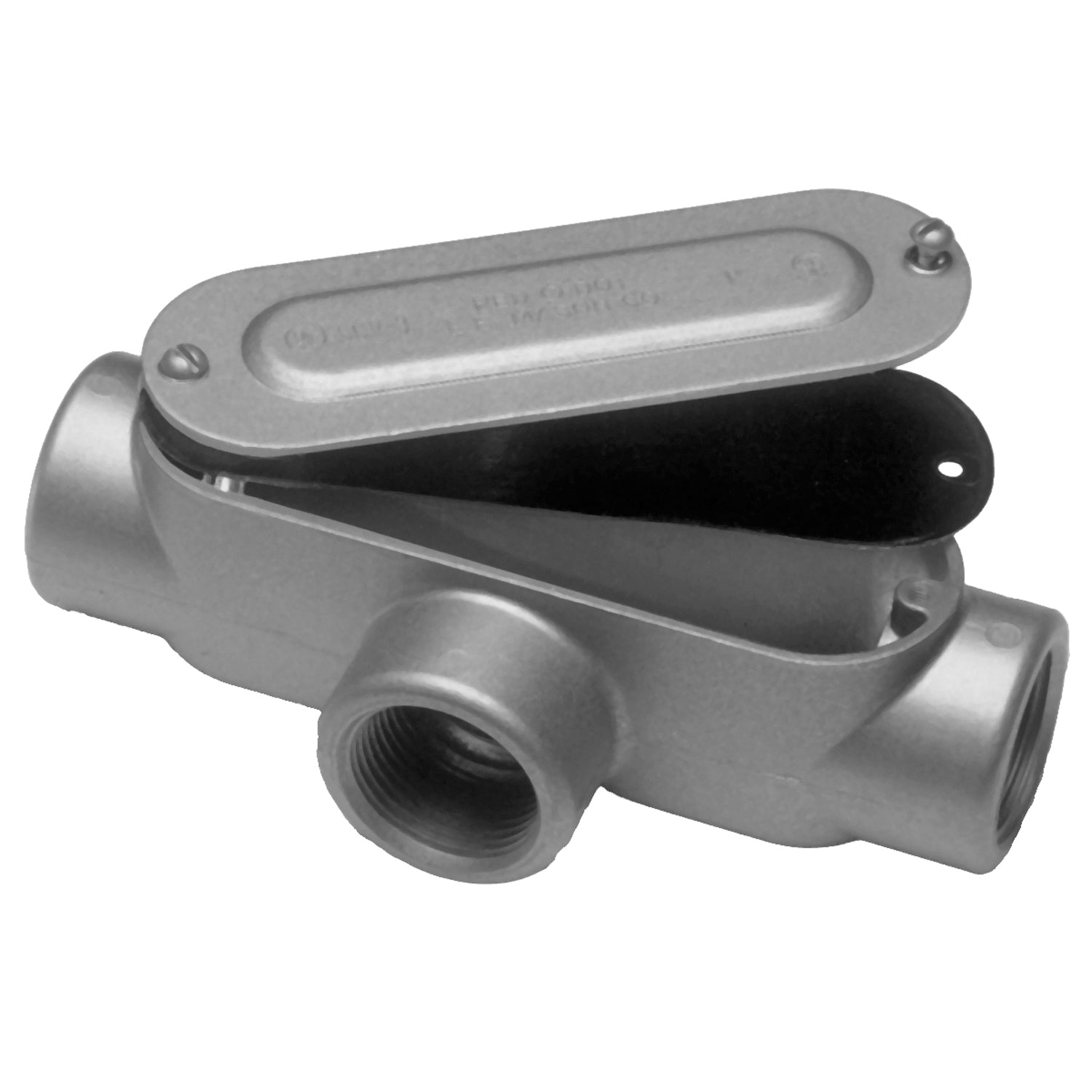

ABB DAT-2-CG RED 3/4 AL T COND BODY

Product Description

ABB DAT-2-CG is a Type T conduit body designed for electrical installations. The product features a three-quarter inch hub and is constructed entirely from die cast aluminum for enhanced durability and corrosion resistance.

• Constructed from copper-free aluminum for better resistance.
• Precision machined surfaces enhance wire pulling safety.
• Comes with retained stainless steel cover screws for quick installation.

Product Highlights

This product is suitable for use with EMT, rigid, and IMC conduit and is preferred for reliable performance in various electrical applications.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 04226981077

Technical Specifications

• Application: For EMT/rigid/IMC conduit
• Connection Type: NPT/Set Screw
• Dimensions: 4-5/8 inches L x 2-11/32 inches W
• Hub Size: 3/4 inches
• Manufacturer Part Number: DAT-2-CG
• Material: Die Cast Aluminum
• Number of Hubs: 3
• Series: A Series
• Standards/Approvals: UL File No. E28688
• Type: Type T
