Abb D255 Galvanized Concrete Insert Channel Strut

Product Description

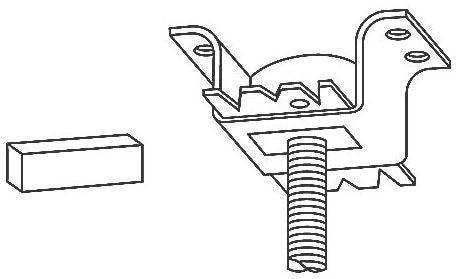

The ABB D255 is a galvanized concrete insert designed for embedding in poured concrete to provide a secure anchor point for channel strut, conduit support, and mechanical system hangers. The galvanized finish resists corrosion in exposed or damp concrete environments. Installed before the concrete pour, it creates a flush, load-rated attachment surface that eliminates the need for post-pour drilling or anchoring. Electrical contractors, plumbers, and mechanical contractors use this type of insert when overhead support structures must be integrated directly into concrete slabs or beams.

Concrete inserts of this type are standard on commercial and industrial construction projects where suspended conduit runs, pipe hangers, and strut systems must be anchored overhead. They are commonly specified on projects requiring clean, embedded fastening solutions in poured concrete ceilings, parking structures, mechanical rooms, and equipment pads. Installation requires coordination with the concrete forming trade to position and secure the insert before the pour.

Key Features

• Galvanized steel construction provides corrosion resistance in concrete and damp environments
• Designed for pre-pour embed — eliminates post-install drilling into cured concrete
• Accepts standard channel strut and hanger hardware for mechanical, electrical, and plumbing support
• Flush-mount profile leaves a clean surface after concrete cures

Compatibility

Designed as an OEM-style concrete insert compatible with standard channel strut framing systems used in commercial electrical, plumbing, and mechanical installations.

Installation Notes

Installation is performed prior to concrete placement by securing the insert to formwork at the required layout location. Verify insert orientation and depth per project drawings before the pour. After concrete cures, inspect the insert opening for debris or grout intrusion before attaching hanger hardware. Follow applicable building code and structural engineer specifications for load ratings and spacing.

Technical Specifications

• Finish: Galvanized
• Weight: 50 pounds
• UPC: 78599176887

Standard Information

• Brand: ABB
• Manufacturer Part Number: D255
