ABB D10721 Thomas & Betts D10721 8 AWG Wire Range 5/16 Inch Bolt Hole Non-Insulated Metallic Tubular Ring Terminal

Product Description

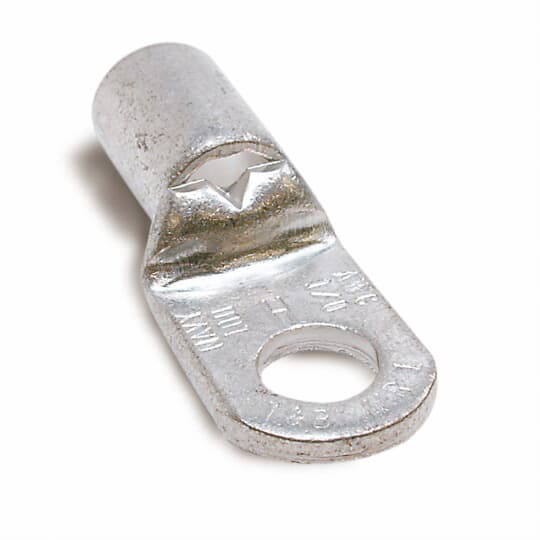

The ABB D10721 is a non-insulated tubular ring terminal designed for 8 AWG wire. It features a bolt hole size of five-sixteenths inches and is made from copper with a tin-plated finish. The terminal dimensions are one point two eight inches in length and zero point five six inches in width.

• Material: Copper with tin plating for enhanced conductivity.
• Temperature rating of one hundred fifty degrees Celsius.
• Suitable for use with round conductors.

Product Highlights

This terminal meets UL standards for safety and performance. It is compatible with standard crimping tools, ensuring easy installation.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Conductor Size: 8 AWG
• Stud Size: 5/16 in
• Length: 1.28 in
• Width: 0.56 in
• Voltage Rating: 600 VAC
• Temperature Rating: 150 degrees C
• Finish: Tin Coated
• Standards/Approvals: UL Listed, CSA Certified
