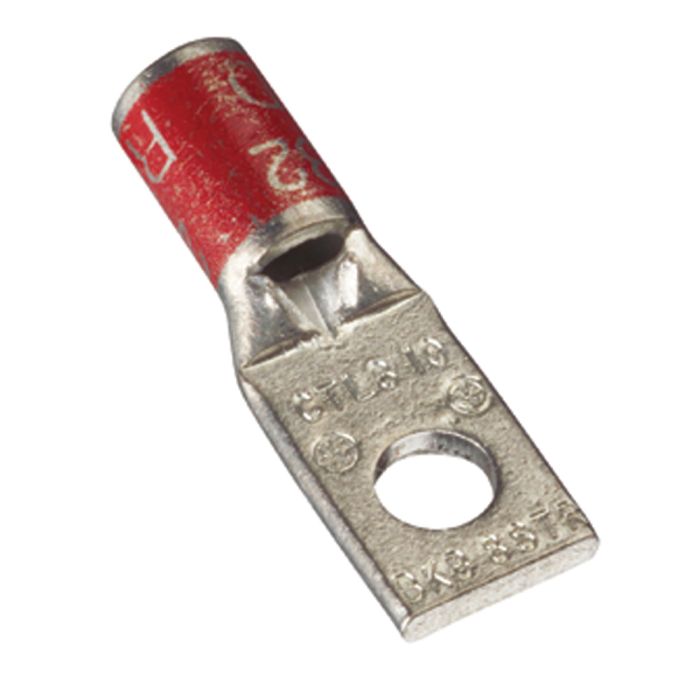

Abb ctl40-38 blackburn compression terminal 35kv 4/0 str. wire 3/8 bolt size 1-hole short barrel

Product Description

The ABB CTL40-38 is a non-insulated, one-hole copper compression terminal designed for reliable electrical wiring. This short barrel lug accommodates 4/0 AWG stranded, flexible, welding, and portable copper conductors, suitable for industrial and building applications up to 35 kV. It features a 3/8 inch stud size and is tin plated for corrosion resistance, ensuring durability in various environments.

• For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for industrial and building applications.
• Color-coded for matching die identification.
• Specifically chamfered barrel for ease of installation.

Product Highlights

High-conductivity seamless copper tubing, tin plated for corrosion resistance, and color-coded for easy die identification.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: CTL40-38
• Country of Origin: Mexico

Technical Specifications

• Brand Name: ABB
• Sub Brand: Blackburn®
• Manufacturer: ABB Installation Products
• Item Name: Compression Lug
• Product Type: Terminals
• Category: Cable or wire lug
• Series: CTL
• Type: Non-Insulated
• Material: Copper
• Conductor Size: 4/0 AWG Stranded
• Conductor Type: Flexible/Stranded Copper
• Stud Size: 3/8 in
• Number of Holes: 1
• Number of Studs: 1
• Voltage Rating: 35 kV
• Finish: Tin Plated
• Color: Purple
• Die Color: Purple
• Barrel Type: Short, Straight
• Barrel Shape: Standard
• Barrel Length: 15/16 in
• Tongue Type: Straight
• Tongue Angle: Straight
• Tongue Size: 29/32 in L x 1-3/32 in W x 1/8 in THK
• Terminal Connection: Ring
• Insulated: No
• Sight-Hole: No
• Connecting Angle: 180° (horizontal)
• Slender Flange Model: No
• Certifications: UL, CSA
• Standards: UL E9809
• UL File Number: E9809
• CSA File Number: 6591
• CSA Class: 622302
• RoHS Compliance: RoHS3 Compliant
• REACH Compliance: REACH 247 Compliant
• TSCA Compliance: TSCA Section 6(h) Compliant
• ETIM Classification: EC001051 Tube cable lug for copper conductors
