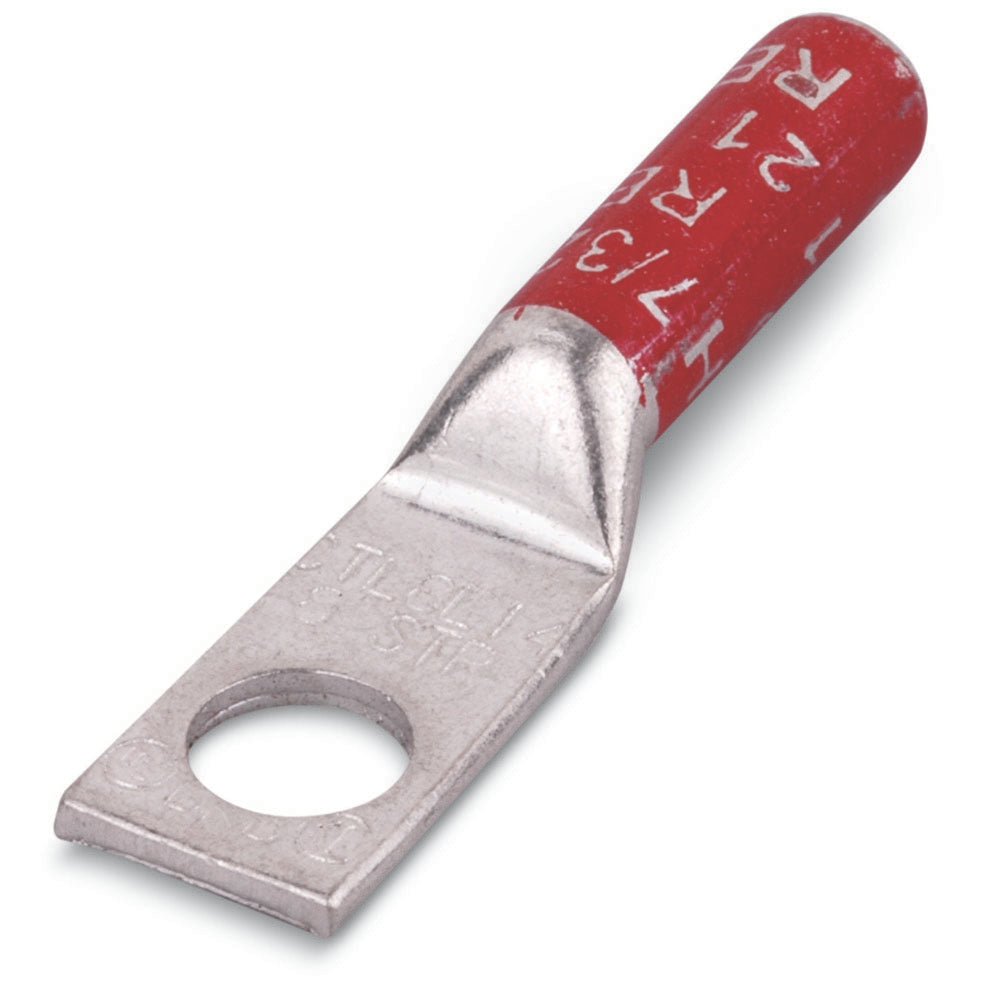

ABB CTL2L-516 T&B COMPR TERMINAL 2 AWG Flexible/Stranded Copper Conductor

Product Description

The ABB CTL2L-516 is a color-keyed compression lug designed for various electrical applications. This 1-hole compression terminal accommodates a 2 AWG flexible or stranded copper conductor. It is rated for up to 35 kV and fits a 5/16 inch stud. The product's design features a straight tongue that measures seven-eighths inch long by nine-sixteenths inch wide with a thickness of three thirty-seconds inch. The overall length of the terminal is two and one thirty-second inches. Its barrel is tin-plated copper, ensuring high conductivity and corrosion resistance.

• For use with copper conductor AWG, stranded, flexible cable, welding cable, and portable cord.
• Designed for medium voltage applications up to 35 kV, requires proper insulation techniques.
• Chamfered barrel for easy installation, color-coded for matching die identification.

Product Highlights

This compression lug ensures secure connections in industrial, oil rig, mining, welding, and transportation electrical termination applications.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78378641031

Technical Specifications

• Application: Industrial, Oil Rig, Mining, Welding and Transportation Electrical Termination Applications
• Barrel Size: 7/8 in L
• Color: Brown
• Conductor Size: 2 AWG
• Conductor Type: Flexible/Stranded Copper
• Overall Length: 2-1/32 in
• Specifications: Tin Plated
• Standards/Approvals: CSA Certified, UL File No. E9809
• Stud Size: 5/16 in
• Tongue Size: 7/8 in L x 9/16 in W x 3/32 in THK
• Tongue Type: Straight
• Type: 1-Hole
• Voltage Rating: 35 kV
