Product Description

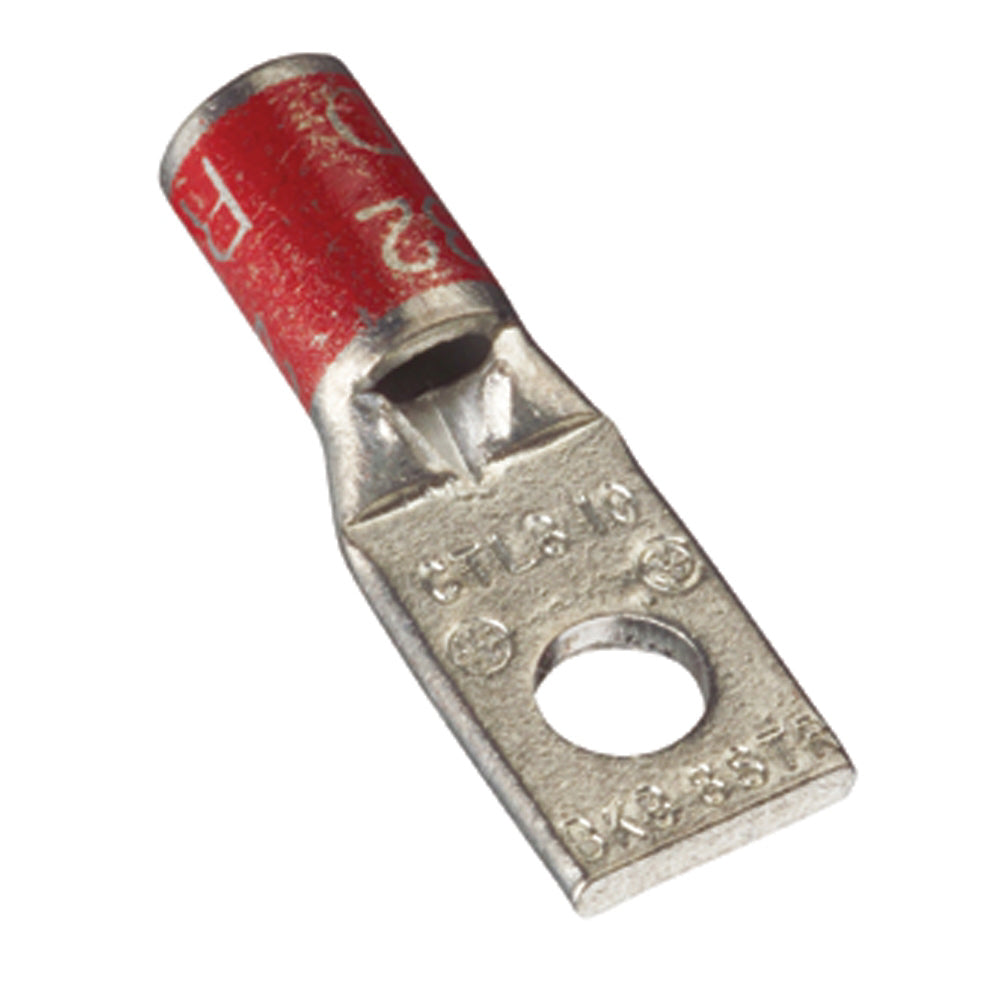

ABB CTL20-38 is a Color-Keyed Compression Lug designed for flexible and stranded copper conductors. This 1-hole lug accommodates a conductor size of 2/0 AWG and is rated for voltages up to thirty-five kV. It features a 3/8-inch stud size and is suitable for various electrical and industrial applications.
- Constructed from high conductivity seamless copper tubing
- Tin plated for corrosion resistance
- Designed for ease of installation and reliable performance
Product Highlights
This compression lug is ideal for medium voltage applications when combined with proper insulation techniques. It is part of ABB's reliable line of connectors used in overhead and grounding applications, offering durability and consistency.
Product Information
Standard Information
-
Manufacturer: ABB - Installation Products
-
UPC: 78378613184
Technical Specifications
-
Type: 1-Hole
-
Color: Black
-
Application: Confined Areas, Industrial and Building Applications
-
Barrel Size: 13/16 in L
-
Conductor Size: 2/0 AWG
-
Conductor Type: Flexible/Stranded Copper
-
Material: Copper
-
Overall Length: 2-1/32 in
-
Series: CTL
-
Voltage Rating: 35 kV
-
Standards/Approvals: CSA Certified|UL File No. E9809
-
Stud Size: 3/8 in
-
Tongue Size: 29/32 in L x 13/16 in W x 1/8 in THK
-
Tongue Type: Straight
