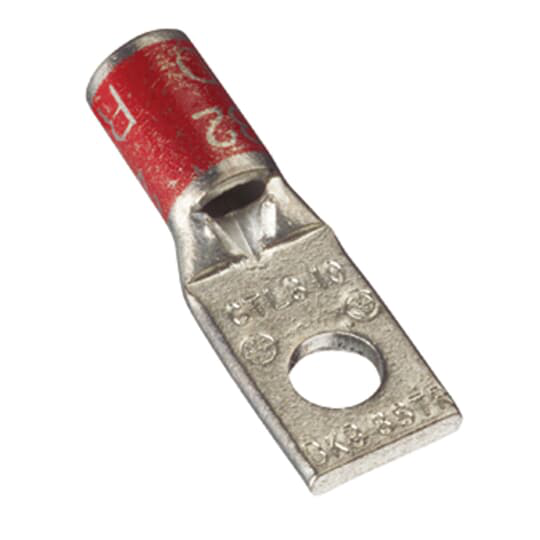

ABB CTL20-12 Blackburn CTL20-12 Compression Terminal 35 kV 1-Hole

Product Description

The ABB CTL20-12 Blackburn Compression Terminal is a copper one-hole lug designed for reliable electrical connections. It is suitable for use with flexible or stranded copper conductors up to 2/0 AWG. This product operates at a maximum voltage of thirty-five kV and features a tin plated finish for enhanced corrosion resistance.

• Type: 1-Hole Compression Lug
• Voltage Rating: 35 kV
• Stud Size: 1/2 inch

Product Highlights

This lug is ideal for industrial applications and confined spaces, providing a secure connection for copper wires.

Product Information

Standard Information

• Material: Copper
• Finish: Tin Plated

Technical Specifications

• Conductor Size: 2/0 AWG
• Barrel Length: 13/16 inch
• Tongue Size: 1-1/4 inch L x 13/16 inch W x 1/8 inch THK
• Overall Length: 2-11/32 inch
• Application: Industrial and Building Applications
• Certification: UL and CSA Certified
• Die Color Code: Black
