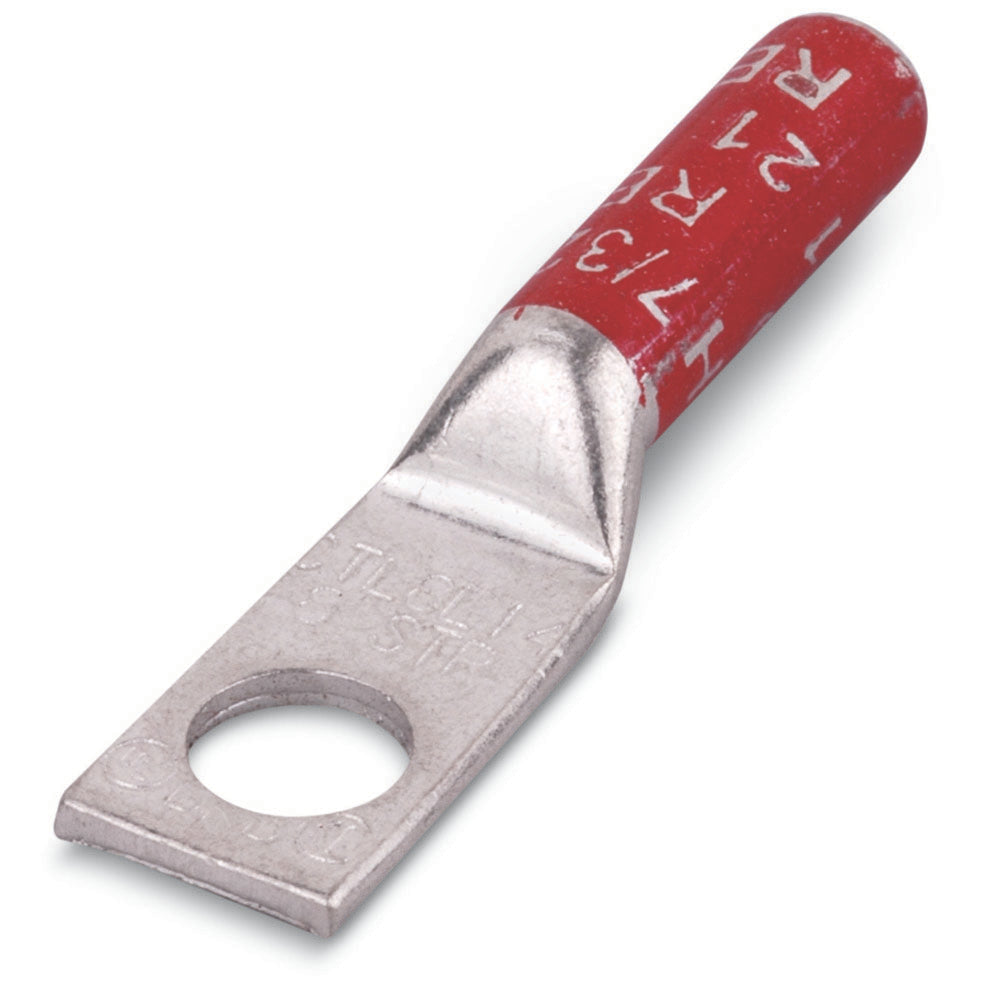

ABB CTL1L-516 TERMINALS
ABB ABB CTL1L-516 T&B CU TP 1HL LUG LONGBRL 1 5/16B GRN
ABB CTL1L-516 TERMINALS
ABB CTL1L-516 T&B CU TP 1HL LUG LONGBRL 1 5/16B GRN

ABB CTL1L-516 T&B CU TP 1HL LUG LONGBRL 1 5/16B GRN

ABB
Brand: ABB
SKU: CTL1L-516
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

ABB CTL1L-516 is a color-keyed compression lug made for electrical applications. It is designed for one-hole connections for flexible or stranded copper conductors. This compression lug supports a conductor size of one AWG and is rated for medium voltage applications up to thirty-five kV. It features a straight tongue configuration.

  • Designed for copper conductor applications
  • Constructed from high conductivity seamless copper tubing
  • Tin plated for improved corrosion resistance

Product Highlights

Suitable for industrial, oil rig, mining, welding, and transportation electrical termination applications.

Product Information

Standard Information

  • Manufacturer: ABB - Installation Products
  • UPC: 78378641030
Technical Specifications
Application:
Industrial, Oil Rig, Mining, Welding, and Transportation Electrical Termination Applications
Barrel Size:
1-3/32 inches long
Color:
Green
Conductor Size:
1 AWG
Conductor Type:
Flexible/Stranded Copper
Material:
Copper
Overall Length:
2-5/32 inches
Series:
CTL
Specifications:
Tin Plated
Standards/Approvals:
CSA Certified | UL File No. E9809
Stud Size:
5/16 inches
Tongue Size:
7/8 inches long x 21/32 inches wide x 3/32 inches thick
Tongue Type:
Straight
Type:
1-Hole
Voltage Rating:
35 kV
