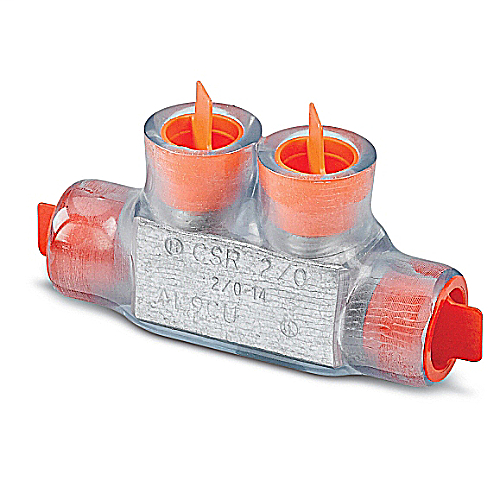

ABB CSR-2/0 Homac 1-Way 2-Outlet Encapsulated Multi-Tap Splice Connector

Product Description

The ABB CSR-2/0 is a Homac brand 1-way, 2-outlet encapsulated splice connector. This connector is designed for both aluminum and copper conductors. It accommodates wire sizes ranging from fourteen AWG to two-aught AWG. The splice is configured for a one-way connection, providing reliable and efficient electrical connections in various applications.

• Accommodates wire sizes from 14 AWG to 2/0 AWG
• Made from aluminum with clear PVC insulation
• Rated for 600 VAC

Product Highlights

The CSR-2/0 connector is effective for utility and outdoor plant applications, ensuring secure connections for electrical distribution and transmission.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: CSR-2/0

Technical Specifications

• Conductor Size: 14 to 2/0 AWG
• Material: Aluminum
• Voltage Rating: 600 VAC
• Connection Type: Screw
• Stud Size: 3/8 in
• Dimensions: 2-3/4 in L x 7/8 in W x 1-3/8 in H
• Temperature Rating: 90 degrees C
