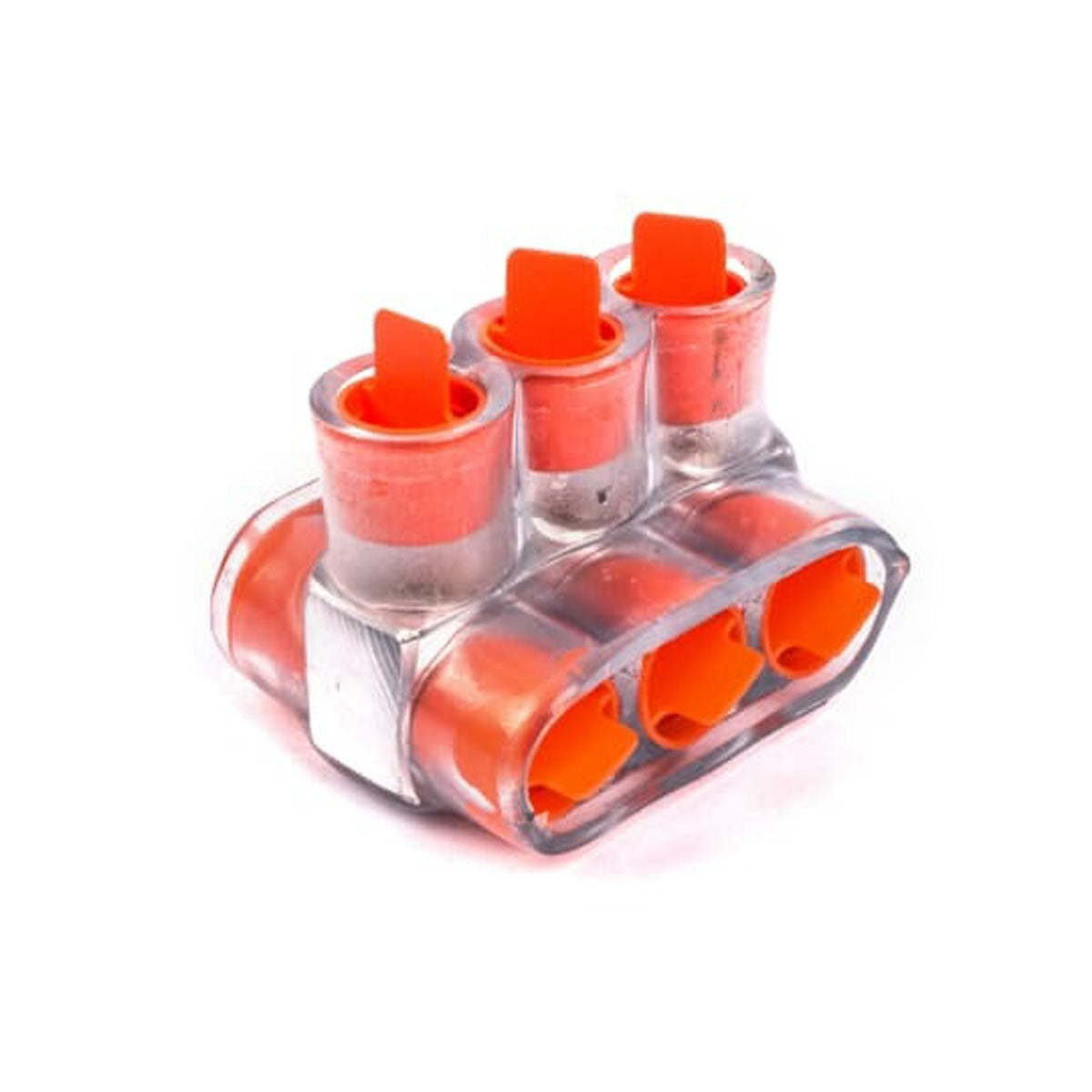

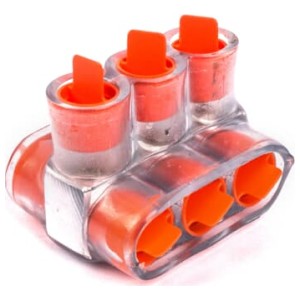

Abb CSB2/0-3 Aluminum Multi-Tap Encapsulated Cable Block Two-Way 3-Outlets CSB 2/0-3

Product Description

The Abb CSB2/0-3 is an aluminum multi-tap encapsulated cable block in a two-way configuration that provides three outlets for tapping conductors. It accepts 2/0 kcmil to 14 AWG stranded wire, features clear PVC insulation for visual inspection, and uses a 3/16 inch hex connection. Overall dimensions are 2.35 x 1.68 x 1.63 inches. It is designed for use with aluminum or copper conductors in electrical tap and branching applications.

• Wire range 2/0 kcmil to 14 AWG stranded; three outlet multi-tap configuration
• Aluminum encapsulated construction with clear PVC insulation and 3/16 inch hex
• Overall dimensions 2.35 x 1.68 x 1.63 inches; compatible with aluminum and copper conductors

Product Highlights

Aluminum encapsulated two-way cable block with three outlets, 2/0 kcmil–14 AWG capacity, clear PVC insulation

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: CSB2/0-3
• Country of Origin: United States

Technical Specifications

• Brand: Abb
• Manufacturer Part Number: CSB2/0-3
• Catalog Number: CSB2/0-3
• Alternate Catalog Number: CSB 2/0-3
• Reference ID: ABBCSB203
• Description: Aluminum multi-tap encapsulated cable block, two-way, 3-outlet
• Material: Aluminum (encapsulated)
• Configuration: Two-way
• Wire Range: 2/0 kcmil - 14 AWG stranded
• Hex Size: 3/16 inch
• Dimensions: 2.35 x 1.68 x 1.63 inches (L x W x H)
• Outlets: 3
• Insulation Material: Clear PVC
• Use With: Aluminum conductors, Copper conductors
• RoHS Compliance: RoHS3 Compliant
• REACH Compliance: REACH 240 Compliant
• TSCA Compliance: TSCA Section 6(h) Compliant
• Country of Origin: United States
• UPC: 78378671460
• ECCN: EAR99
• UNSPSC: 39121408
