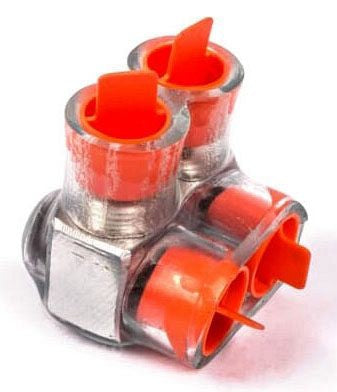

ABB CSB-4-2-S INSUL MULTI PORT BAR 4AWG 2-POS

Product Description

The ABB CSB-4-2-S is a multi-tap cable block designed for efficient electrical connections. This product features a dual-rated encapsulated construction and is suitable for stranded aluminum and copper conductors. Rated for six hundred volts alternating current, it is compatible with wiring sizes ranging from fourteen to four AWG.

• Dual rated for aluminum and copper conductors
• Clear PVC insulation for safe installations
• Compact dimensions of one point fifteen inches in length, one point twenty-five inches in width, and one point twenty-five inches in height

Product Highlights

The multi-tap cable block is ideal for various commercial and industrial applications, providing reliable connections without the need for additional taping.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Model Number: CSB-4-2-S

Technical Specifications

• Conductor Type: Stranded Aluminum/Copper
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Application: Commercial and Industrial Applications
• Material: Aluminum
• Dimensions: 1.15 in L x 1.25 in W x 1.25 in H
• Standards/Approvals: ANSI C119.4 | UL File No. E9809
• Specifications: 14 to 4 AWG Wire, Clear PVC Insulation
