ABB CSB-2/0-4 MULTI CABLEBLOCK 2WAY

Product Description

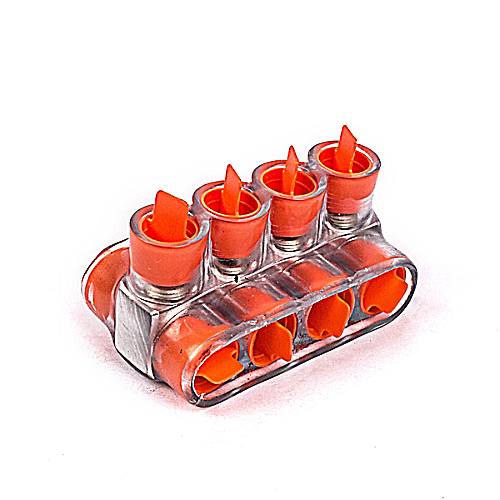

The ABB CSB-2/0-4 Multi Cableblock is a robust solution for connecting cables in various configurations. This aluminum multi-tap encapsulated cable block features a two-way design and is ideal for wire ranges from two to zero kcmil to fourteen strands. The compact size, measuring three point zero eight inches in length, one point six eight inches in width, and one point six three inches in height, is engineered for functionality and efficiency in electrical installations.

• Two-way configuration for versatile applications.
• Clear PVC insulation provides safe installation without taping.
• Compatible with both aluminum and copper cables.

Product Highlights

The ABB CSB-2/0-4 offers an efficient way to manage multiple connections with safety and ease. Designed for professionals, it supports a wide variety of conductor sizes, ensuring seamless integration into existing systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Type: 2-Way, 4-Outlet, Insulated
• Material: Aluminum
• Voltage: 600 Volt
• Conductor Size: 14-2/0 AWG
• Dimensions: 3-1/8 inches length x 1-3/4 inches width x 1-3/8 inches height
• Stud Size: 3/16 inches
• Temperature Rating: 90 degrees C
• Approvals: ANSI C119.4, RoHS Compliant, UL E9809 Listed
